Description

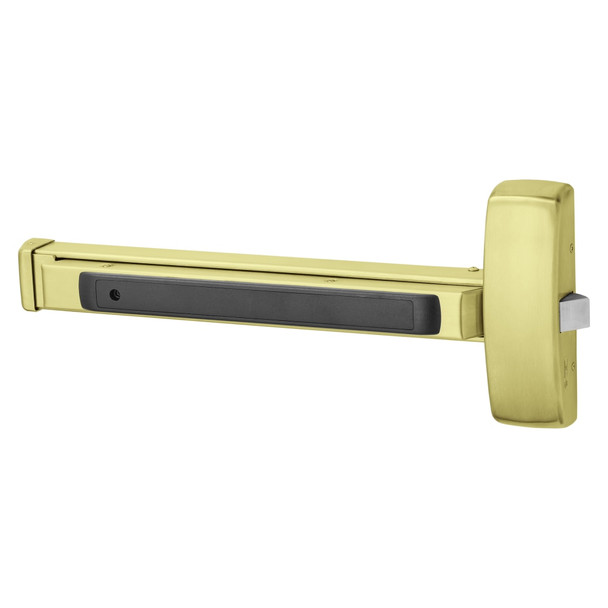

The Sargent 80 Series exit device is a single-point rim latch solution engineered for wood and metal doors requiring Grade 1 security and reliability. Ideal for commercial facilities, educational institutions, and high-traffic environments, this device delivers the durability and low maintenance needed for building-life performance while meeting strict ANSI/BHMA standards.
Compatible with 1-3/4" thick doors in E, F, J, and G rail configurations (24" to 48" widths), the 80 Series features modular construction, UL Fire and Panic certification, and optional delayed egress or electric latch retraction capabilities. As an authorized Sargent dealer, E.D. Locks provides expert installation guidance and compatibility verification. Contact our specialists at sales@edlocks.com or 1-877-207-6067 for sizing and configuration support.
Specifications
- Door Thickness: 1-3/4" (44mm); thicker doors available with 31- prefix
- E Rail: 24" to 32" (61cm to 81cm)
- F Rail: 33" to 36" (84cm to 91cm)
- J Rail: 37" to 42" (94cm to 107cm)
- G Rail: 43" to 48" (110cm to 122cm)
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Configuration: Single-point rim latch, single and double door compatible
- Features: Modular construction, minimal moving parts, quiet operation
