Description

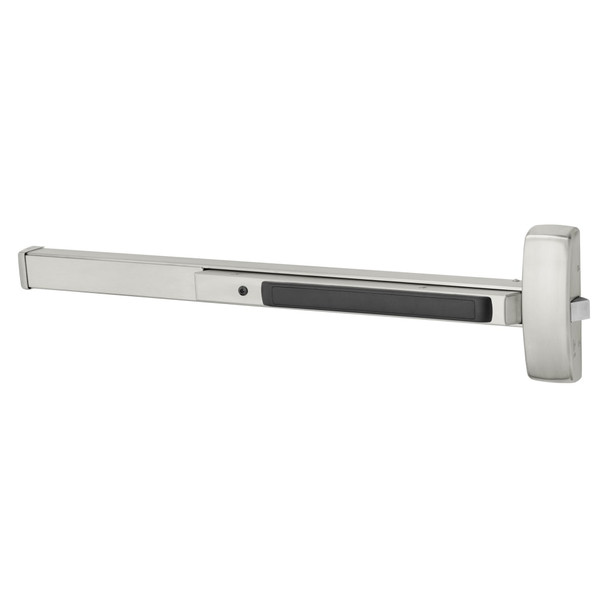

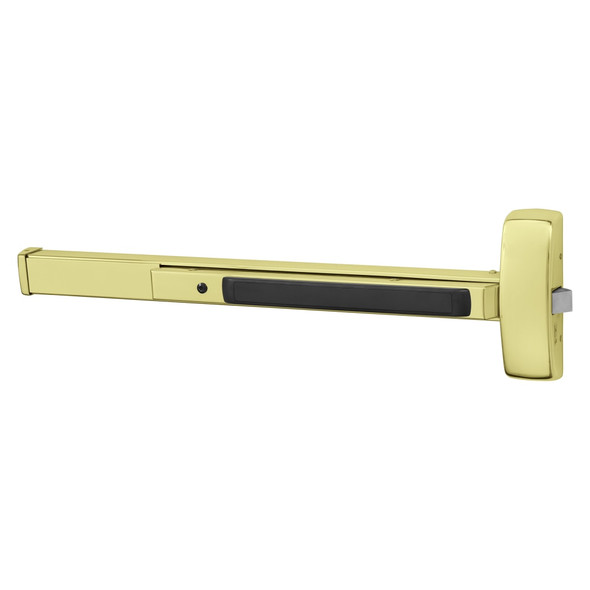

The Sargent 80 Series exit device is a single-point rim latching solution built for wood and metal doors requiring Grade 1 security and durability. Ideal for commercial facilities, healthcare, education, and high-traffic environments, it solves the need for maintenance-free egress hardware that exceeds ANSI/BHMA standards and delivers quiet, reliable operation throughout the building's life.
This device fits 1-3/4" thick doors, 24-32" widths on the E Rail (no cutting required for 32" doors). It supports single and double door applications with mullions and is UL Fire and Panic listed. For expert guidance on rail selection, door thickness, and installation, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for free technical support.
Specifications
- Brand: Sargent
- Model: 55-8876F 32D
- Configuration: Rim, single-point latching
- Door Type: Wood or metal, 1-3/4" (44mm) thick
- Door Width Range: 24-32" (61-81cm) on E Rail
- Standard Width: 32" (no cutting required)
- Applications: Single and double doors with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Modular construction, few moving parts, quiet operation, maintenance-free
