Description

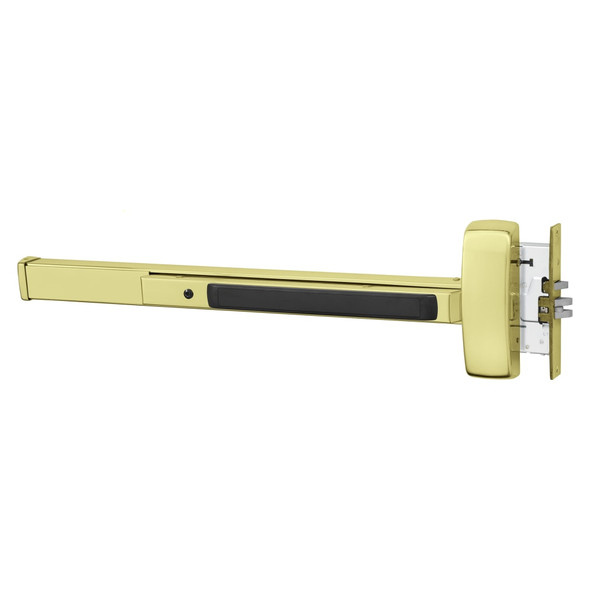

The Sargent 80 Series 55-8943F is a mortise exit device engineered for facilities demanding Grade 1 security and durability. Right-hand reverse (RHR) configuration suits wood or metal doors 1-3/4" thick with 4.5" minimum stile width. Its modular design minimizes maintenance while delivering ANSI/BHMA Grade 1 cycle and strength performance for institutional, commercial, and high-traffic environments.
Installation fits F Rail doors 33-36" (no cutting at 36") with options for delayed egress, alarmed exit, and electric latch retraction. As an authorized Sargent dealer, E.D. Locks provides expert configuration guidance and support. Contact sales@edlocks.com or 1-877-207-6067 to verify compatibility with your specific door assembly and application requirements.
Specifications
- Brand: Sargent
- Model: 55-8943F RHR 32D
- Configuration: Mortise, Right-Hand Reverse
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Type: F Rail
- Door Width Range: 33-36" (84-91cm)
- No Cutting Required At: 36" door
- Standards: ANSI/BHMA Grade 1
- Door Types: Wood or metal
- Options: Delayed egress, alarmed exit, electric latch retraction
