Description

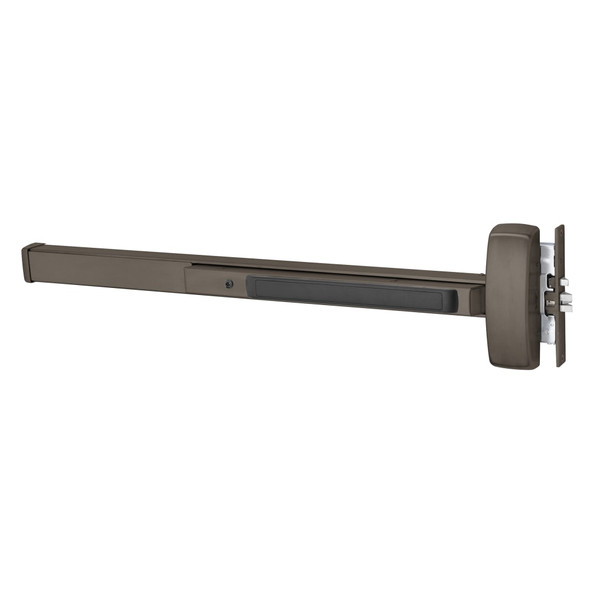

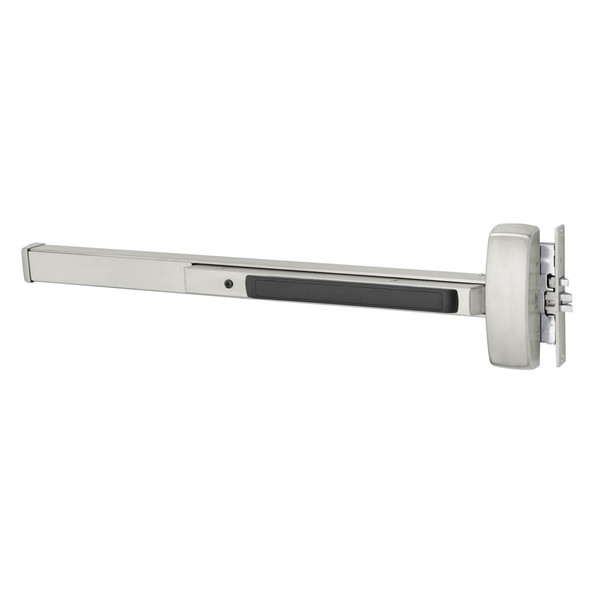

The Sargent 80 Series mortise exit device delivers ANSI/BHMA Grade 1 certified security and durability for wood or metal doors 1-3/4" thick. Designed for facilities demanding long-lasting, low-maintenance egress hardware, this right-hand reverse (RHR) model features modular construction with few moving parts, eliminating routine servicing while exceeding industry strength and cycle standards.
This mortise unit fits doors 24" to 32" wide using the E Rail configuration with no cutting required for 32" doors. Verify your door thickness, width, and hand orientation before ordering. As an authorized Sargent dealer, E.D. Locks provides expert guidance on rail selection, installation, and compliance. Contact us at sales@edlocks.com or 1-877-207-6067 for technical support and competitive pricing.
Specifications
- Brand: Sargent
- Model: 55-8976F RHR 32D
- Configuration: Mortise
- Certification: ANSI/BHMA Grade 1
- Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm)
- Door Width Range (E Rail): 24" to 32" (61cm to 81cm)
- No Cutting Required: 32" door
- Minimum Stile Width: 4-1/2" (114mm)
- Hand: Right-Hand Reverse (RHR)
