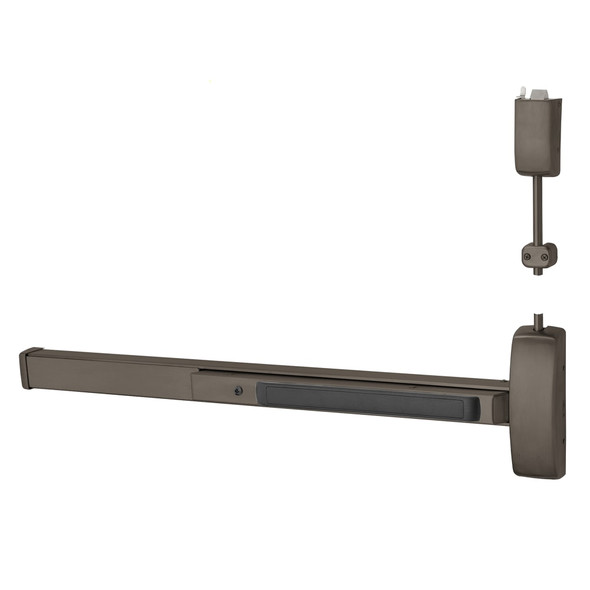

Sargent 80 Series 55-NB8773J RHR Exit Device

The Sargent 80 Series exit device is a heavy-duty panic hardware solution designed for wood and metal doors in commercial facilities requiring ANSI/BHMA Grade 1-compliant security. Its modular construction and minimal moving parts ensure maintenance-free operation throughout the building's life, making it ideal for schools, offices, hospitals and other high-traffic environments.

This rim-mounted right-hand reverse model fits standard 1-3/4 inch thick doors and accommodates door widths from 24 to 42 inches depending on rail type (E, F, or J). The 80 Series supports optional delayed egress, alarmed exit, and electric latch retraction features. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for application verification, rail selection guidance, and expert installation support.

Specifications

• Brand: Sargent
• Model: 55-NB8773J RHR 32D
• Configuration: Rim-mounted, right-hand reverse
• Door Thickness: 1-3/4 inch (44mm)
• Door Width Range: 24-42 inches (E, F, J rail options)
• Standards: ANSI/BHMA Grade 1
• Door Types: Wood or metal
• Minimum Stile: 4-1/2 inch with trim, 3-1/2 inch without trim
• Options: Delayed egress, alarmed exit, electric latch retraction
