Description

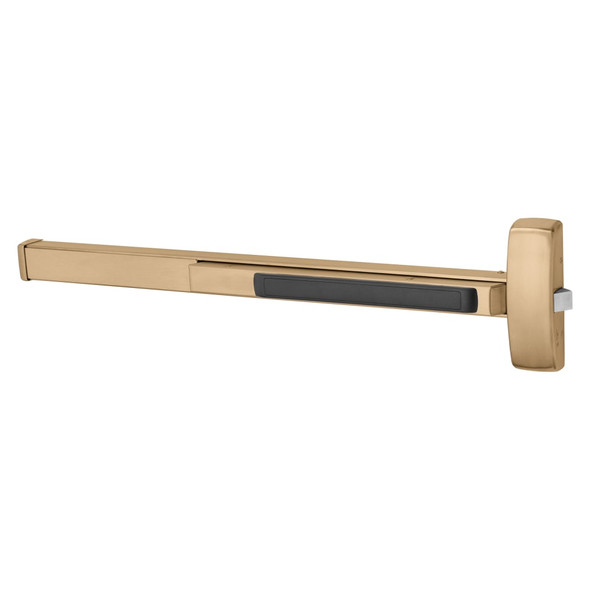

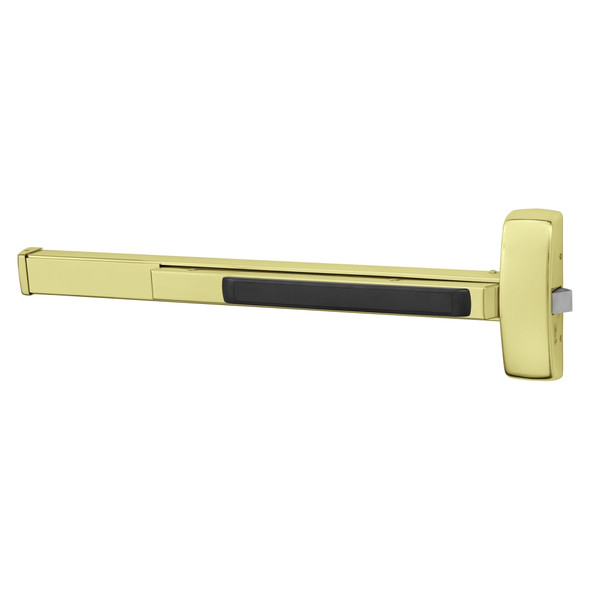

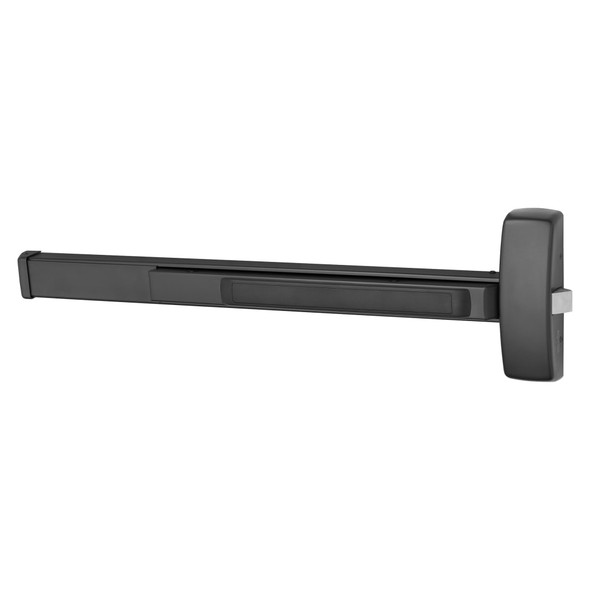

The Sargent 80 Series 5556-8810J rim exit device delivers Grade 1 security for wood and metal doors up to 1 3/4 inches thick. Designed for facilities requiring durable, maintenance-free egress hardware, this single-point latching device handles single and double door applications with exceptional strength and quiet operation that exceeds ANSI/BHMA standards.
The J Rail configuration fits doors 37 to 42 inches wide with no cutting required for 42-inch doors. This device is UL Fire and Panic listed and supports optional features like delayed egress, alarmed exit, and electric latch retraction. Contact an authorized E.D. Locks specialist at sales@edlocks.com or 1-877-207-6067 for expert assistance selecting the right exit device and configuration for your building.
Specifications
- Brand: Sargent
- Model: 5556-8810J 32D
- Type: Rim Exit Device, 80 Series
- Door Thickness: 1 3/4 inches (44mm); over 1 3/4 inch specify thickness
- Rail Type: J Rail
- Door Width Range: 37 to 42 inches (94cm to 107cm)
- No Cutting Required: 42-inch doors
- Latch Configuration: Single-point latching
- Door Applications: Single and double doors with mullions
- Material Compatibility: Wood or metal doors
- Standards: ANSI A156.3 Grade 1, UL Fire and Panic Listed
- Features: Modular construction, maintenance-free, quiet operation
- Optional Features: Delayed egress, alarmed exit, electric latch retraction
