Description

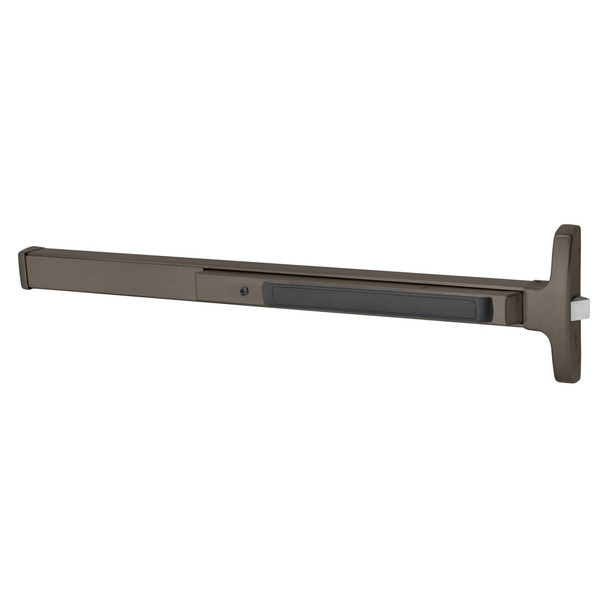

The Sargent 80 Series rim exit device is a heavy-duty egress solution for wood and metal doors in commercial and institutional facilities. Built to exceed ANSI/BHMA Grade 1 strength and cycle requirements, it delivers maintenance-free security with modular construction and minimal moving parts for long-term reliability.
This device fits 1-3/4 inch thick doors with 1-3/4 inch minimum stile width. Rail options accommodate door widths from 24 to 48 inches (E, F, J, and G rails). Optional features include delayed egress, alarmed exit, and electric latch retraction. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for sizing assistance and full compatibility verification.
Specifications
- Series: 80 Series
- Model: 56-8504G 10B
- Configuration: Rim
- Door Thickness: 1-3/4 inch (44mm)
- Minimum Stile Width: 1-3/4 inch (44mm)
- Rail Options: E (24-32 inch), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Door Types: Wood or metal
- Standards: Exceeds ANSI/BHMA Grade 1
