Description

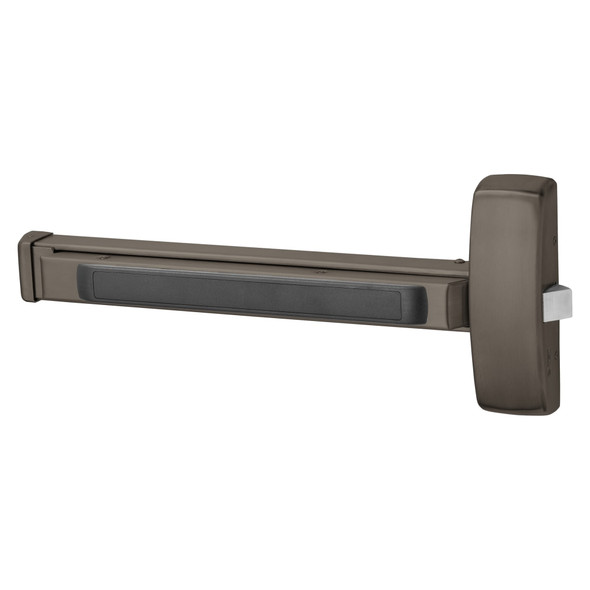

The Sargent 80 Series rim exit device provides Grade 1 security for wood or metal doors in commercial and institutional buildings. Designed for demanding environments, this push-bar exit device combines modular construction with minimal moving parts to deliver maintenance-free, long-lasting performance that exceeds ANSI/BHMA standards.
This right-hand reverse (RHR) model fits doors 24" to 48" wide with 1 3/4" thickness; verify your door width range and stile depth before ordering. E Rail (24-32"), F Rail (33-36"), J Rail (37-42"), and G Rail (43-48") options accommodate standard commercial openings. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert sizing assistance and to confirm compatibility with your specific door configuration.
Specifications
- Brand: Sargent
- Model: 56-8513E ETF
- Configuration: Rim, Right-Hand Reverse
- Finish: 10B
- Door Thickness: 1 3/4" (44mm) minimum
- Door Width Range: 24" to 48" (varies by rail type)
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or metal
