Description

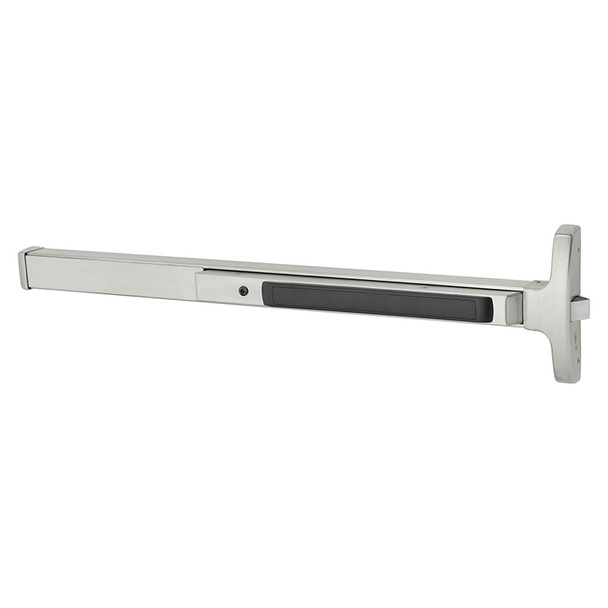

The Sargent 80 Series rim exit device is engineered for commercial facilities requiring durable, code-compliant emergency egress hardware. Built to exceed ANSI/BHMA Grade 1 standards, this heavy-duty device features modular construction with minimal moving parts, delivering maintenance-free operation and reliable security for wood or metal doors 1 3/4 inches thick.
The 56-8513F 32D model installs on doors 24 to 32 inches wide with no cutting required for 32-inch doors. Optional configurations include delayed egress, alarmed exit, and electric latch retraction for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, installation, and after-sale support as an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 56-8513F 32D
- Device Type: Rim Exit Device
- Series: 80 Series
- Door Thickness: 1 3/4 inch (44mm)
- Door Width Range: 24 to 32 inches (61cm to 81cm)
- Standard Width: No cutting required for 32-inch doors
- Door Material: Wood or metal
- Minimum Stile Width: 1 3/4 inch (44mm)
- Standards: Exceeds ANSI/BHMA Grade 1
- Construction: Modular design with few moving parts
- Maintenance: Maintenance-free operation
- Optional Features: Delayed egress, alarmed exit, electric latch retraction available
