Description

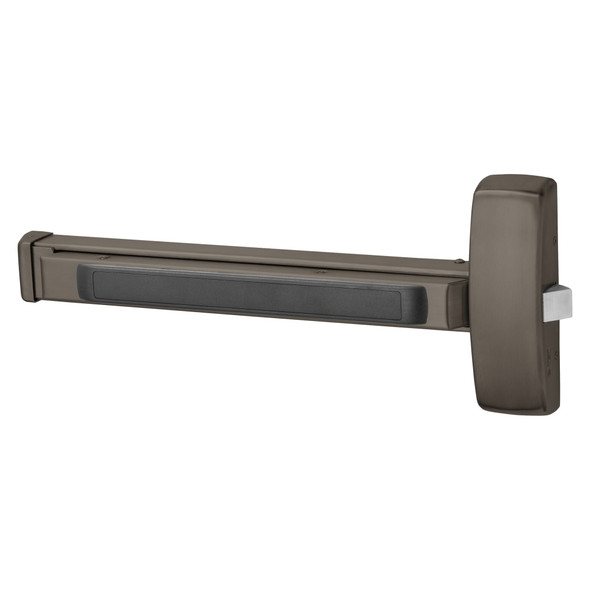

The Sargent 80 Series rim exit device is a Grade 1 panic hardware solution for wood and metal doors requiring durable, maintenance-free security. Ideal for commercial facilities, schools, and healthcare settings, it provides single-point latching on single or double doors with mullions. Built to exceed ANSI/BHMA Grade 1 cycle and strength requirements, this device delivers decades of reliable performance.
The 56-8863E RHR (right-hand reverse) fits 1-3/4" thick doors, 24" to 32" wide with the E rail (no cutting for 32" doors). Thicker doors and other widths require alternate configurations. As an authorized Sargent dealer, E.D. Locks provides expert installation guidance and compatibility verification. Contact our team at sales@edlocks.com or 1-877-207-6067 for door specifications and to ensure correct ordering.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 56-8863E RHR 32D
- Device Type: Rim Exit Device
- Door Compatibility: Wood or metal, 1-3/4" (44mm) thick
- Door Width: 24" to 32" (E Rail)
- No cutting required for 32" door
- Configuration: Single point rim latching
- Applications: Single door and double door with mullions
- Certification: ANSI A156.3 Grade 1, UL Fire and Panic listed
- Features: Quiet operation, modular construction, minimal maintenance
