Description

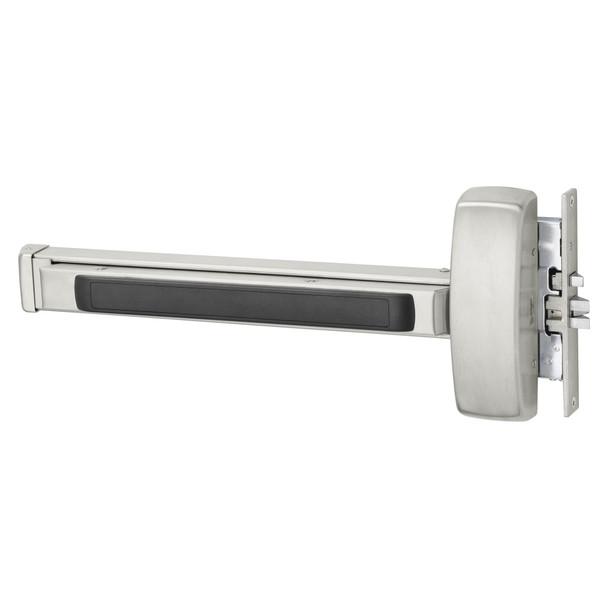

The Sargent 80 Series 56-8946E is a heavy-duty mortise exit device engineered for wood and metal doors requiring Grade 1 security and reliability. Ideal for commercial facilities, schools, and institutional buildings, this device provides durable egress solutions that exceed ANSI/BHMA standards with minimal maintenance and maximum peace of mind.
This left-hand reverse (LHR) mortise unit fits standard 1-3/4" thick doors with 4-1/2" minimum stile width. The E-rail configuration accommodates doors 24" to 32" wide with no cutting required at 32". Modular construction and few moving parts ensure long-term performance. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, installation, or custom options like delayed egress or electric latch retraction.
Specifications
- Brand: Sargent
- Model: 56-8946E
- Configuration: Mortise
- Handing: LHR (Left-Hand Reverse)
- Finish: 32D (Stainless Steel)
- Compatible Door Thickness: 1-3/4" (44mm)
- Compatible Door Width (E-Rail): 24" to 32" (61cm to 81cm)
- Minimum Stile Width: 4-1/2" (114mm)
- Standard: ANSI/BHMA Grade 1
- Series: 80 Series
