Description

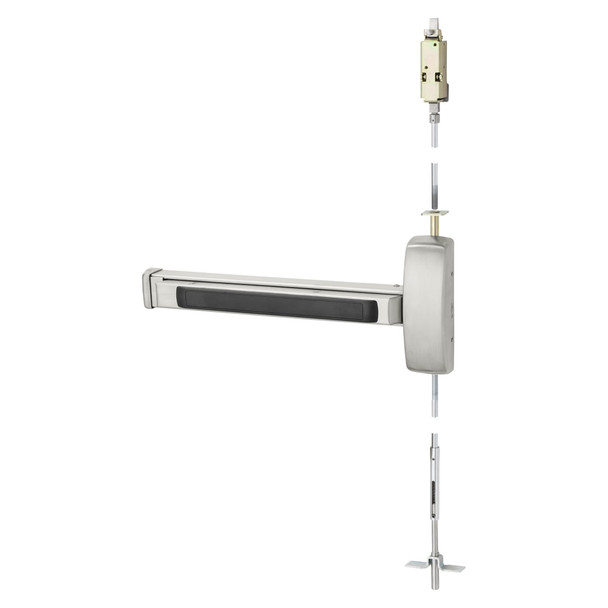

The Sargent 80 Series AD8615E is a heavy-duty exit device engineered for commercial metal doors requiring ANSI/BHMA Grade 1 security and reliability. Ideal for facilities demanding durability across the building lifecycle, this right-hand reverse (RHR) model with 32D strike configuration offers modular construction with minimal moving parts for maintenance-free operation and superior security.
Compatible with 1 3/4" minimum thickness metal doors, the device mounts at 41" from finished floor (38" for elementary schools). Installation uses supplied machine screws with stainless steel top bolt. E, F, J, and G rail sizes accommodate door widths from 24" to 48". Optional electric features include delayed egress, alarm, photoluminescent coating, and remote latch retraction. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration and keying specifications.
Specifications
- Model: 56-AD8615E ETL RHR 32D
- Series: Sargent 80 Series
- Door Thickness: 1 3/4" (44mm) minimum; up to 2 1/4" with specification
- Minimum Stile Width: 4 1/2" (114mm)
- Device Centerline: 41" (1041mm) standard; 38" (965mm) for accessibility
- Center Case Dimensions: 8 3/8" (213mm) x 2 5/8" (67mm)
- Pushbar Projection: 3" (76mm) neutral; 2 1/8" (54mm) depressed
- Maximum Door Height: 96" (for HC and WS options)
- Maximum Door Opening Height: 120" (3048mm)
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Strike: 650 Top & 606 Bottom (panic and fire-rated)
- Top Bolt: Stainless Steel
- Dogging: Hex key standard (16- option for cylinder dogging with #41 cylinder)
- Fasteners: Machine screws supplied
- Optional Electric: AL (alarm), BT (beacon), PL (photoluminescent), TL (illuminated touchpad), 53 (latchbolt monitor), 54 (lever monitoring), 55 (rail monitoring), 56 (remote latch retraction), 57 (delayed egress & electromagnets), 58 (electric dogging), 59 (self-contained delayed egress)
