Description

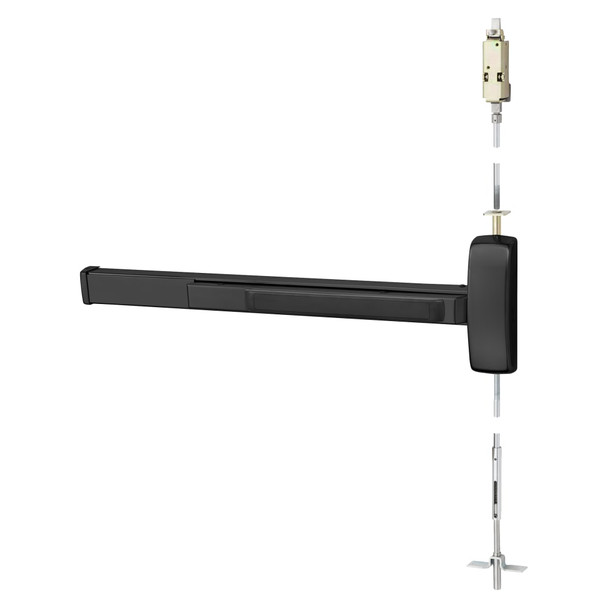

The Sargent 80 Series exit device is a Grade 1 panic hardware solution for metal doors requiring reliable emergency egress and long-term durability. Built for facilities across commercial, institutional and industrial sectors, it delivers maintenance-free operation with modular construction and few moving parts, exceeding ANSI/BHMA strength and cycle requirements.
This left-hand reverse (LHR) model fits 1.75 inch minimum thickness doors and installs with supplied machine screws at 41 inches from finished floor. Available rail options (E, F, J, G) accommodate door widths from 24 to 48 inches. Optional electric features include delayed egress, alarm, photoluminescent coating, and latch retraction. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for configuration guidance and fast shipping.
Specifications
- Series: Sargent 80 Series
- Model: MD8606F LHR 20D
- Door Thickness: 1.75 inch (44mm) minimum; up to 2.25 inches with specification
- Minimum Stile Width: 4.5 inches (114mm)
- Device Centerline Height: 41 inches (1041mm) standard; 38 inches (965mm) for elementary schools with 100 Series Auxiliary Control
- Maximum Door Height: 120 inches (3048mm)
- Pushbar Projection: 3 inches (76mm) neutral, 2.125 inches (54mm) depressed
- Center Case Dimensions: 8.375 inches (213mm) W x 2.625 inches (67mm) H
- Top Bolt: Stainless steel
- Strikes: 650 Top Strike and 606 Bottom Strike (panic and fire-rated)
- Dogging: Hex key standard on non-fire-rated; cylinder dogging with #41 cylinder available (specify 16-)
- Rail Options: E (24-32 inch doors), F (33-36 inch), J (37-42 inch), G (43-48 inch)
- Electric Options Available: Alarm (AL), Beacon (BT), Photoluminescent SARGuide (PL), Illuminated Touchpad SARGuide (TL), Latchbolt Monitor (53), Outside Lever Monitoring (54), Request-to-Exit Signal (55), Remote Latch Retraction (56), Delayed Egress with Electromagnets (57), Electric Dogging (58), Electroguard Delayed Egress (59)
