Description

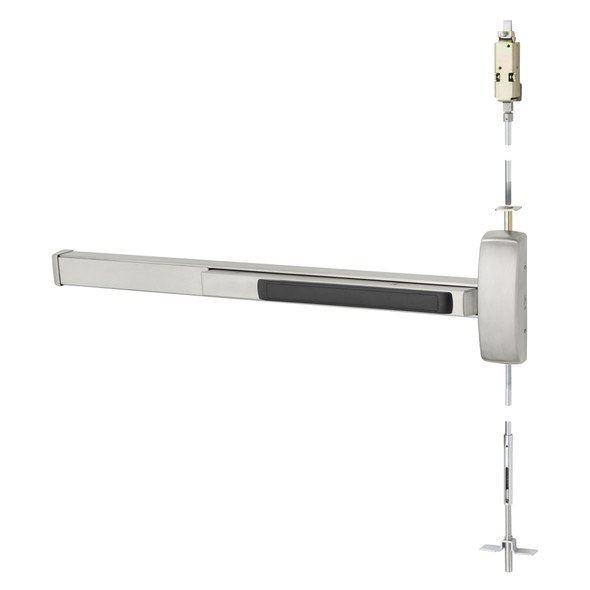

The Sargent 80 Series MD8640J is a heavy-duty exit device engineered for commercial and institutional buildings requiring ANSI/BHMA Grade 1 security and reliability. Ideal for metal doors 1 3/4" to 2 1/4" thick, this left-hand reverse (LHR) model features a durable rim configuration with modular construction, minimal moving parts, and maintenance-free operation for facilities of any size.
The J-rail fits door widths 37" to 42" and installs with factory-cut sizing when door width is provided. Compatible with 650 top and 606 bottom strikes (panic and fire-rated), this device supports optional features including delayed egress, alarmed exit, electric latch retraction, and photoluminescent or illuminated guidance. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying, and configuration assistance.
Specifications
- Brand: Sargent
- Model: 56-MD8640J LHR 32D
- Configuration: Rim, left-hand reverse
- Door Thickness: 1 3/4" to 2 1/4" (44mm to 57mm)
- Rail: J-Rail (37" to 42" door widths, no cutting required for 42" doors)
- Minimum Stile Width: 4 1/2" (114mm)
- Device Centerline from Floor: 41" (1041mm) standard; 38" (965mm) for elementary schools
- Center Case Dimensions: 8 3/8" x 2 5/8" (213mm x 67mm)
- Pushbar Projection: Neutral 3" (76mm); Depressed 2 1/8" (54mm)
- Top Bolt: Stainless steel
- Strikes: 650 Top & 606 Bottom (panic and fire-rated)
- Dogging: Hex key standard (non fire-rated); cylinder dogging optional
- Maximum Door Height: 96" (certain options)
- Fasteners: Machine screws supplied standard
- Standards: Exceeds ANSI/BHMA Grade 1 for cycle and strength
