Description

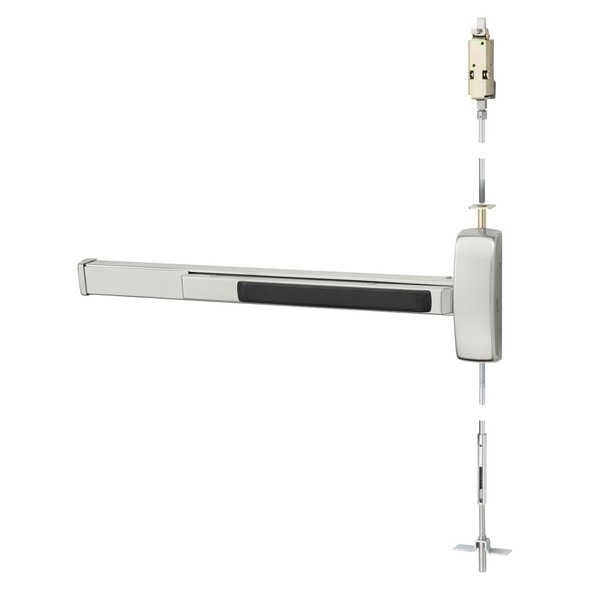

The Sargent 80 Series exit device is a heavy-duty egress solution for wood and metal doors in commercial and institutional facilities. Built to exceed ANSI/BHMA Grade 1 standards, it delivers maintenance-free security with modular construction and minimal moving parts. Ideal for buildings requiring durable, life-cycle hardware.
This rim-mounted exit device fits standard doors 1-3/4" to 2-1/4" thick and accommodates door widths 24" to 32" (E Rail, no cutting required at 32"). Options include delayed egress, alarmed exit, and electric latch retraction for specialized applications. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert compatibility verification and installation guidance as an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 56-NB8713J
- Series: 80
- Configuration: ETA LHR 32D (Rim, Left Hand Reverse)
- Door Thickness: 1-3/4" to 2-1/4" (44mm to 57mm)
- Door Width Range: 24" to 32" (E Rail)
- Minimum Stile: 4-1/2" with trim, 3-1/2" without trim
- Door Types: Wood or metal
- Standard: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free, optional delayed egress, alarmed exit, electric latch retraction
