Description
The Sargent 80 Series exit device is a heavy-duty panic bar built for commercial facilities demanding maximum durability and security. Ideal for wood or metal doors 1-3/4" thick, it exceeds ANSI/BHMA Grade 1 strength and cycle requirements. Its modular construction and minimal moving parts ensure maintenance-free operation throughout the building's lifecycle, with optional delayed egress, alarmed exit, and electric latch retraction features.
This right-hand reverse (RHR) model fits E Rail doors 24-32" wide with no cutting required at 32". Compatible with doors up to 2-1/4" thick (order with 31- prefix) and stiles as narrow as 3-1/2" without trim. As an authorized Sargent dealer, E.D. Locks provides expert guidance on proper sizing, installation, and keying. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications

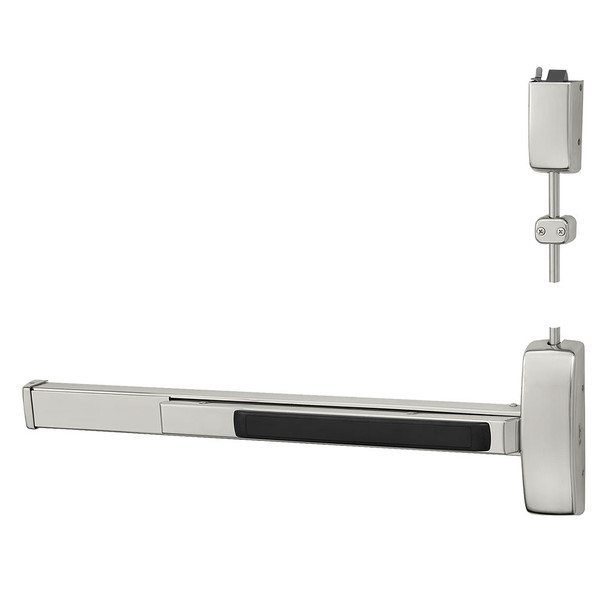

- Model: 56-NB8746F RHR 32D
- Series: Sargent 80
- Configuration: Rim exit device
- Handing: Right-hand reverse
- Door thickness: 1-3/4" (44mm)
- E Rail width range: 24-32" (61-81cm)
- No cutting required: 32" door width
- Minimum stile: 3-1/2" (44mm) without trim; 4-1/2" (114mm) with trim
- Door types: Wood or metal
- Standards: Exceeds ANSI/BHMA Grade 1
