Description

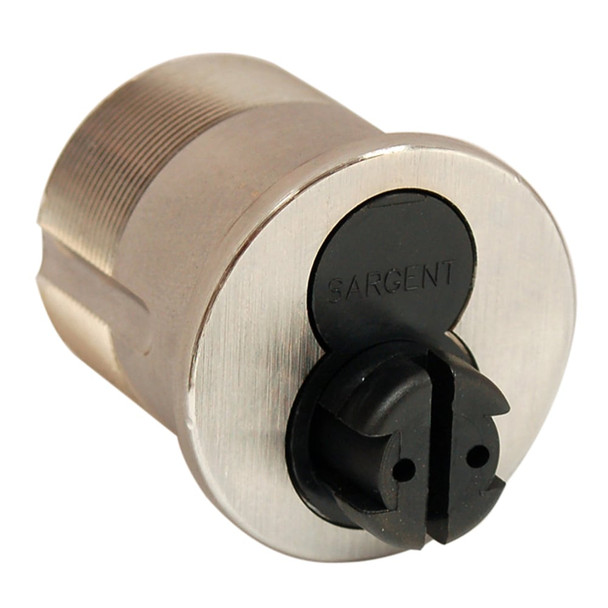

The Sargent 6044 32D X 113 is a solid brass mortise cylinder housing designed for master key systems requiring LFIC (Less Frequently Interchanged Cylinder) compatibility. Built for institutional and commercial facilities, it provides secure keying flexibility while maintaining the reliability of a mortise-mounted cylinder in standard door preparations.
This housing ships standard with a number 97 rosette and compression spring, ready for installation into mortise-prepared doors. Confirm your door thickness and cylinder length requirement before ordering; lengths range from 1-1/8 inches to 3 inches. Contact an E.D. Locks authorized specialist at sales@edlocks.com or 1-877-207-6067 for keying options, collar specifications, and cam selections tailored to your system.
Specifications
- Brand: Sargent
- Model: 6044 32D X 113
- Housing Material: Solid brass
- Face Cap Options: Brass, bronze, or stainless steel in architectural finishes
- Standard Components: Number 97 rosette, compression spring
- Standard Cam: Sargent offset cam number 13-0664
- Available Lengths: 1-1/8 inches through 3 inches
- Minimum 7-Pin Length: 1-1/4 inches
- Optional: Collars and spacers available separately
