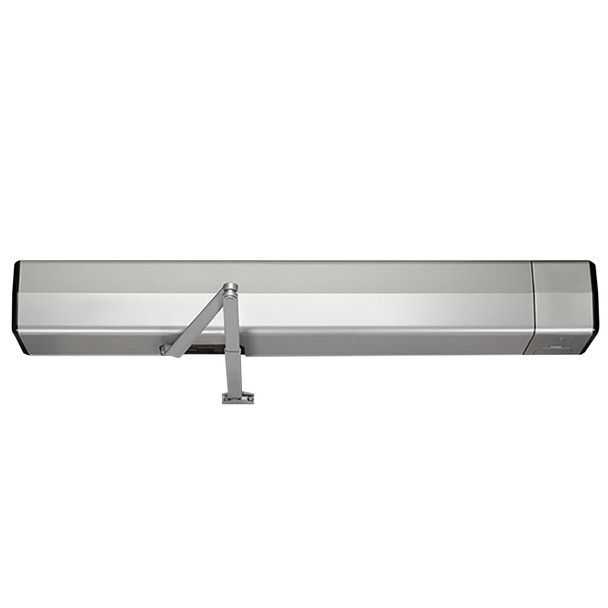

6061 689 Norton Door Operators

The 6000 Series low energy operator is a heavy-duty unit designed for rigorous, high-use applications. Built-in intelligence enables the operator to safeguard users while providing better door control. Simple installation and adjustment features combined with the unit’s high level of versatility allows for seamless integration with a multitude of facilities and systems.

Functions:

• Push and Go selector
  • As the door is manually opened, the operator "senses" movement and opens door to the full-open position
• Open/Close obstruction detection
  • Open: Door closes if it hits an obstruction while opening
  • Close: Door re-opens (once) if it hits an obstruction while closing – if the door hits the obstruction again, the door will rest against the obstruction until it is removed
• Motor startup delay adjustment
  • Delays operator opening
• Vestibule delay adjustment
• Hold open delay adjustment
• Single Pole Double Throw (SPDT) relay output
  • SPDT relay output time adjustment
  • SPDT alarm output
• Blow open for smoke ventilation
• Presence detector input
• Selector mode switch
  • Off – Disables signal inputs except blow open
  • On – Activates signal inputs
  • Infinite Hold Open - Door will hold open at set position until power is turned off

Features:

• Push or pull side mounting
• Non-handed
• 1.3A onboard power supply
• Activated by push button, handsfree and RF devices
• Infinite hold open
• Maximum door size 4'0" x 8'0", 250 lbs
• Push and Go opens door to full-open position upon manual activation
• Obstruction Detection on both open and close cycle
• Operates as a mechanical surface closer when power is off
• On board electronics collect usage and cycle count data to facilitate preventative maintenance/diagnostics
• 2 year limited warranty
