Description

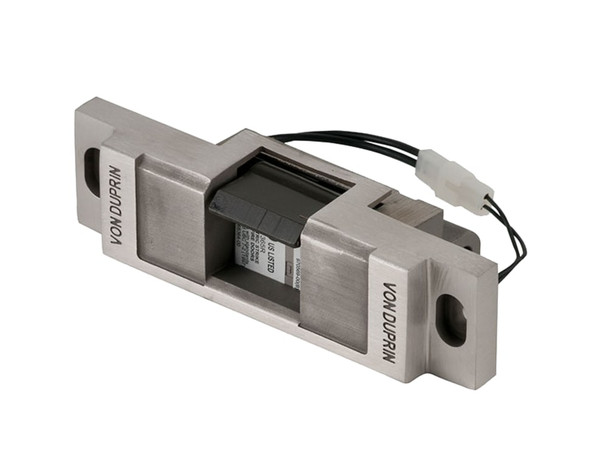

The Von Duprin 6112 is a heavy-duty electric strike for secured door access control in commercial and institutional applications. Built with stainless steel construction and UL1034 burglary resistance, it solves the challenge of reliable remote door release on fire-rated and standard doors. Its non-handed design and adjustable strike box accommodate various frame conditions and installation scenarios.
Compatible with standard 12V DC power supply (24V and AC also available), the 6112 installs with supplied two-piece plug connectors for straightforward setup and future servicing. As an authorized Von Duprin dealer, E.D. Locks provides expert guidance on compatibility, finish selection, and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical assistance and to confirm specifications for your application.
Specifications
- Voltage: 12V DC (24V and AC optional)
- Hold Force: 1500 lbs (ANSI 156.5 Grade 1)
- Static Strength: 1300 lbs
- Dynamic Strength: 70 ft-lbs
- Endurance: 1,000,000 cycles
- Certifications: UL1034 burglary-resistant, UL10C fire door rated, BHMA A156.31 Grade 1
- Construction: Heavy-duty stainless steel
- Design: Non-handed, adjustable strike box
- Installation: Two-piece plug connectors
- Finishes: Six options available
