Description
The Sargent 8200 mortise lock is a heavy-duty access control solution for commercial buildings, hospitals, schools, and behavioral health facilities. It exceeds ANSI/BHMA Grade 1 standards and is UL-listed for three-hour fire doors and windstorm applications, delivering superior strength and security against unauthorized entry and vandalism.
Compatible with standard mortise lock preparations, the 8200 supports 58 functions including electromechanical and security options, plus six lever designs and 14 finishes to match any aesthetic. As an authorized Sargent dealer, E.D. Locks provides expert keying guidance and compatibility support. Contact sales@edlocks.com or call 1-877-207-6067 for installation assistance and security key system selection.
Specifications

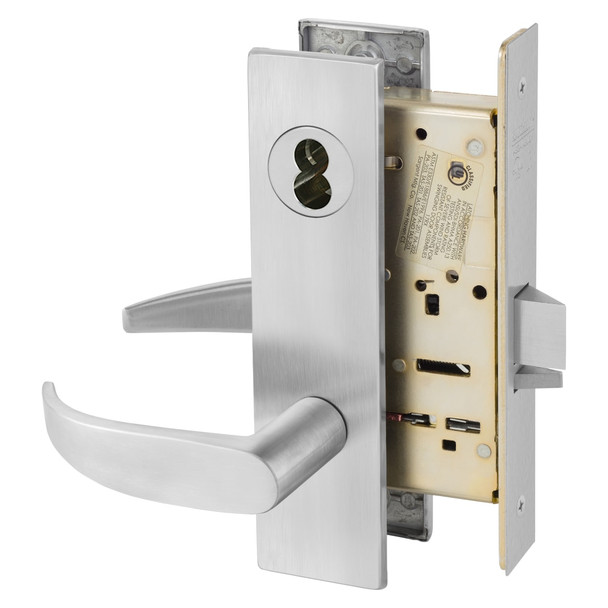

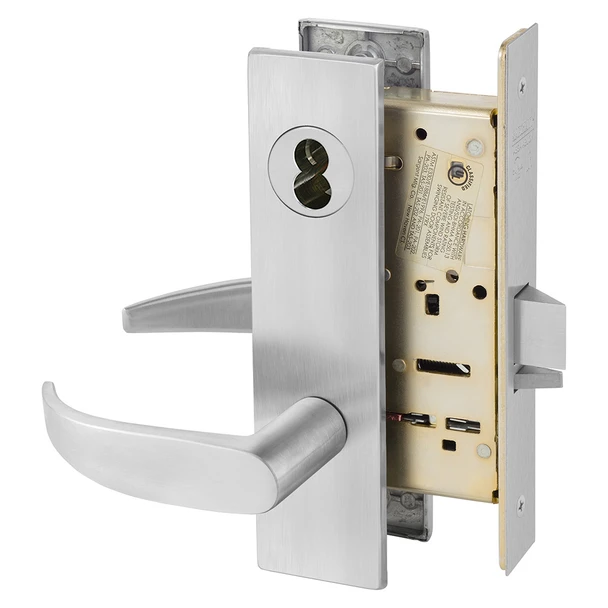

- Model: 70-8256 LE1P 26D
- Certification: ANSI/BHMA Grade 2, UL-cUL listed for three-hour fire doors and windstorm applications
- Finish: 26D (Satin Chrome)
- Functions: 58 available including electromechanical, security, anti-vandal pull trim, and monitoring
- Lever Designs: 6 options
- Roses/Escutcheons: 2 designs
- Architectural Finishes: 14 available
- Security Key Systems: Degree, Signature, KESO, XC compatible
- Special Features: Thru-bolted lever trim, strengthened cylinder retainer, behavioral health trim available
- Warranty: 10 years
