Description

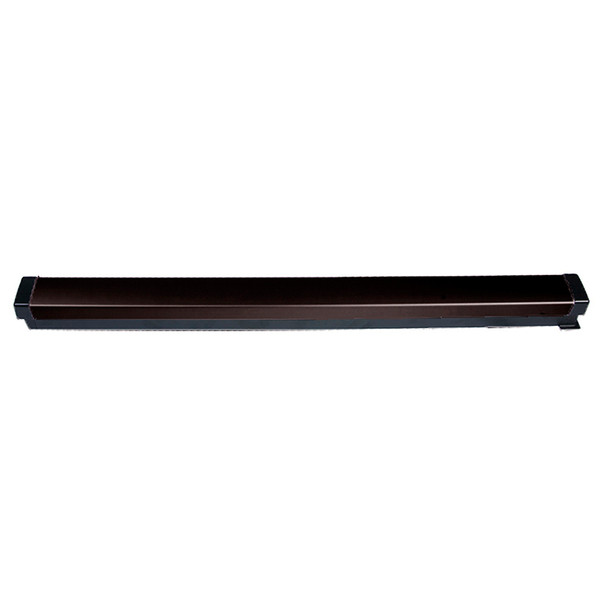

The Adams Rite 8099-M2-3248 is an active dummy pushbar with dual monitor switches, designed for aluminum doors up to 48 inches wide. Built from extruded aluminum with a durable dark bronze finish, this non-handed device suits standard 1-3/4" to 2-1/4" door thickness and fits doors up to 8 feet tall. It solves accessibility and emergency egress needs on commercial storefronts, offices, and institutional buildings.
The pushbar adjusts from 30" to 44" height and projects 2-15/16" when fully extended. It accepts standard rim cylinders and works with optional dogging (hex key, cylinder, or electric). As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for keying options and installation questions.
Specifications
- Brand: Adams Rite
- Model: 8099-M2-3248
- Finish: Dark Bronze
- Pushbar Length: 48"
- Bar Height Adjustment: 30" to 44"
- Door Compatibility: Up to 8 ft tall, 1-3/4" to 2-1/4" thick
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Handing: Non-handed, field reversible
- Features: 2 monitor switches, active dummy configuration
- Dogging Options: Hex key, cylinder (8100 series), or electric
- Warranty: Five year limited
