Description

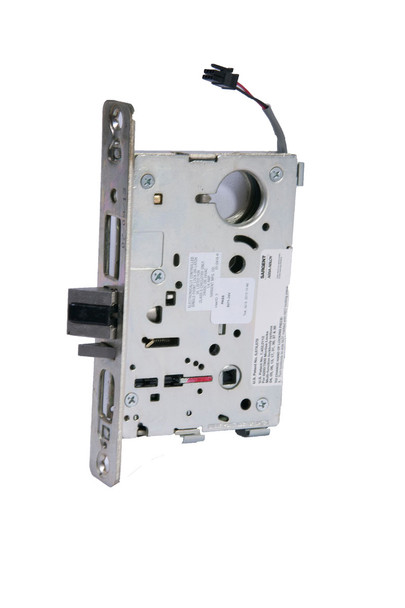

The Sargent 8271-12V 26D is an electromechanical mortise lock built for access control on single doors or integrated systems. Its field-changeable fail-safe/fail-secure design operates on 12V to 24V power, making it ideal for facilities needing flexible security with ANSI/BHMA Grade 1 performance and UL fire-door listing.
This lock fits standard 1.75-inch doors with a 2.75-inch backset and reversible latch. Sargent offers multiple cylinder options (Signature, V-10, XC, KESO) and finishes to match your décor and security requirements. As an authorized dealer, E.D. Locks provides expert installation guidance and access to the full Sargent line. Contact our team at sales@edlocks.com or 1-877-207-6067 for compatibility questions or custom keying.
Specifications
- Brand: Sargent
- Model: 8271-12V
- Finish: 26D (Satin Chrome)
- Power: 12V to 24V
- Case: 12-gauge wrought steel, zinc dichromate plated, 7/64 inch thick
- Latchbolt: Stainless steel, 3/4 inch projection, reversible
- Deadbolt: Stainless steel, 1 inch projection
- Backset: 2-3/4 inches
- Front Plate: 8 inches x 1-1/4 inches, ANSI Standard A115.1
- Door Thickness: 1-3/4 inches standard
- Minimum Stile: 4-1/2 inches
- Cylinder: Brass, size #41 (1-1/8 inch)
- Keyway: LA standard
- Keys Included: Two nickel silver
- Strike: ANSI Standard A115.1, curved lip, non-handed
- Certifications: ANSI/BHMA A 156.13 Grade 1, UL listed for fire doors
- Warranty: 2-year limited warranty on electrified lock
- Functions: Field changeable fail-safe and fail-secure
