Description

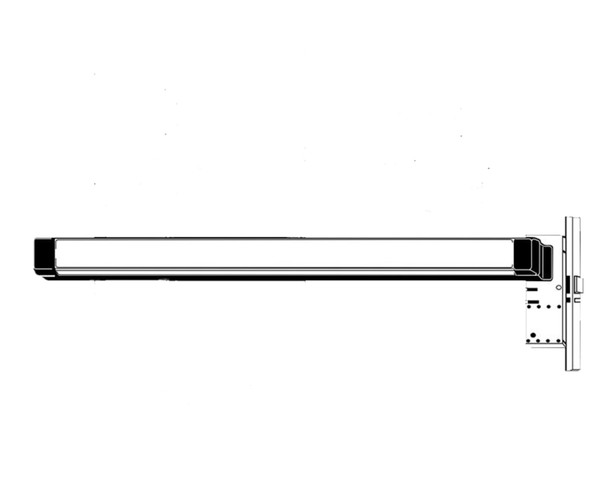

The Adams Rite 8332-7336 is a mortise exit device engineered for hollow metal and wood doors in commercial buildings. This 36-inch pushbar device suits right-hand-reverse (RHR) applications and delivers reliable emergency egress with an extruded aluminum pushbar available in multiple finishes. It solves the need for compliant, durable panic hardware on standard and tall door openings.
Compatible with doors up to 8 feet tall (taller doors require separate 8055 Kit) and accommodates door thicknesses from 1-3/4 to 2-1/4 inches. The device features field-reversible lever entry trim, adjustable bar height, and optional dogging and cylinder configurations. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on handing, keying, and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for specification confirmation and order assistance.
Specifications
- Brand: Adams Rite
- Model: 8332-7336
- Type: Mortise Exit Device
- Pushbar Length: 36 inches
- Handing: Right-Hand Reverse (RHR)
- Material: Extruded aluminum pushbar, clad or anodized
- Finish: Black
- Door Type: Hollow metal and wood doors
- Bar Height Range: 30 to 44 inches
- Door Height: Up to 8 feet (standard)
- Door Thickness: 1-3/4 to 2-1/4 inches
- Stile Width Minimum: 3-3/4 inches
- Projection: 2-15/16 inches fully projected, 1-15/16 inches dogged
- Dogging: Standard hex key or optional cylinder dogging
- Non-handed: Lever entry trim is field reversible
- Warranty: Five-year limited
