Description

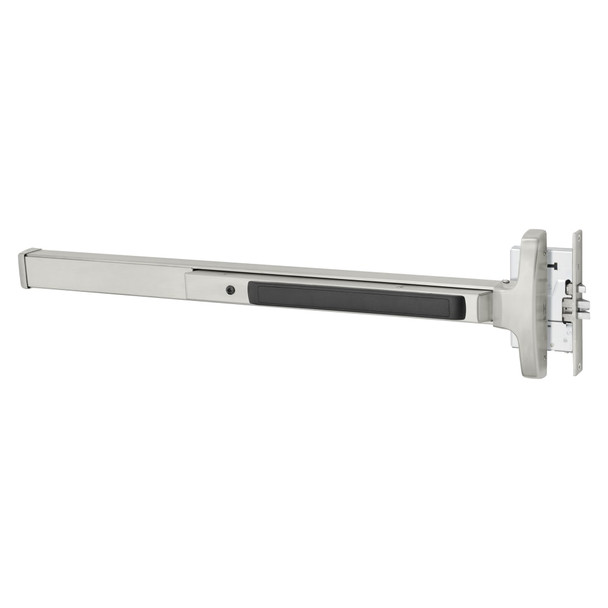

The Sargent 8363F mortise exit device is a Grade 1 rated panic hardware solution for wood and metal doors requiring heavy-duty security and durability. Designed for 1-3/4" thick doors with 4-1/2" minimum stile width, this left-hand reverse (LHR) configuration fits door openings 24-32" wide and requires no cutting for 32" doors, making it ideal for retrofit and new construction projects in commercial buildings.
The 80 Series delivers modular construction with minimal moving parts for maintenance-free operation. Installation requires professional handling to ensure proper mortise preparation and latch alignment. As an authorized Sargent dealer, E.D. Locks offers expert guidance on configuration options, door prep, and compliance verification. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support and free shipping on orders over $450.
Specifications
- Brand: Sargent
- Model: 8363F LHR 32D
- Type: Mortise Exit Device
- Configuration: Left-Hand Reverse (LHR)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Door Width Range: 24-32" (61-81cm)
- No-Cut Application: 32" doors
- Door Material: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Series: 80 Series
