Description

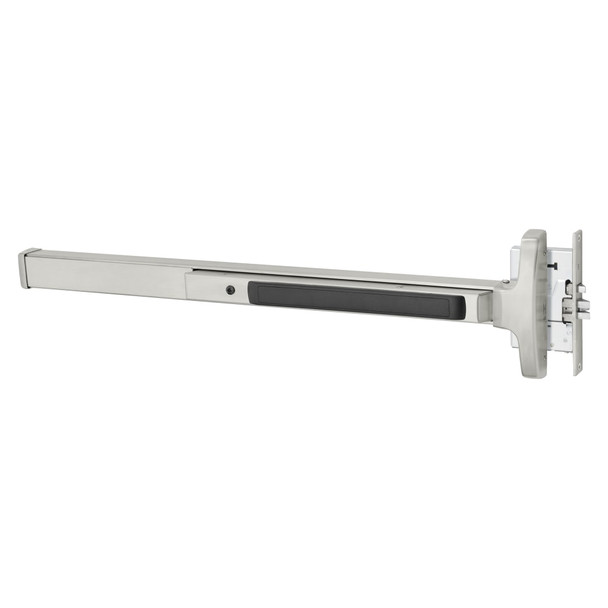

The Sargent 8374G is a mortise exit device built for high-traffic commercial facilities demanding durability and security. Designed for wood or metal doors 1-3/4" thick with a minimum 4-1/2" stile, this Grade 1 device solves the challenge of reliable emergency egress with modular construction and minimal maintenance required over the building's lifetime.
This right-hand reverse model fits E-rail doors 24" to 32" wide with no cutting required at 32". The 80 Series exceeds ANSI/BHMA Grade 1 cycle and strength standards. As an authorized Sargent dealer, ED Locks provides expert guidance on configuration, installation, and keying options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support and fast shipping.
Specifications
- Brand: Sargent
- Model: 8374G RHR 32D
- Type: Mortise Exit Device
- Configuration: Right-Hand Reverse (RHR)
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Rail Type: E Rail
- Door Width Range: 24" to 32" (61cm to 81cm)
- No-Cut Width: 32"
- Grade: ANSI/BHMA Grade 1
- Series: 80 Series
