Description

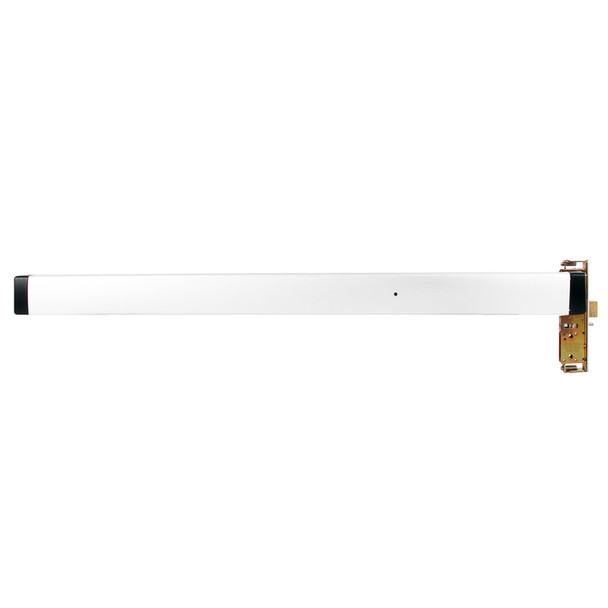

The Adams Rite 8400-27036 is a mortise exit device engineered for narrow stile aluminum doors on commercial and institutional buildings. This right-hand reverse (RHR) model features a 31/32" backset and 36" pushbar, solving the need for reliable emergency egress on high-traffic entrances while maintaining ADA compliance.
Built for 1 3/4" to 2 1/4" thick doors up to 8 feet tall, this bright stainless steel device installs in standard openings with field-reversible lever trim and adjustable bar height from 30" to 44". Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert specification help, keying options, and authorized dealer support on your installation.
Specifications
- Brand: Adams Rite
- Model: 8400-27036-US32
- Type: Mortise Exit Device
- Backset: 31/32"
- Pushbar Length: 36"
- Handing: RHR (Right Hand Reverse)
- Finish: Bright Stainless Steel
- Bar Height Range: 30" to 44" adjustable
- Door Thickness: 1 3/4" to 2 1/4"
- Door Height Capacity: Up to 8 ft (10 ft with optional 8055 Tall Door Kit)
- Stile Width Minimum: 3 3/4"
- Projection: 2 15/16" fully projected, 1 15/16" when dogged
- Pushbar Material: Extruded aluminum
- Dogging: Standard hex key dogging
- Warranty: Five year limited
- Compatible Doors: Narrow stile aluminum
