Description

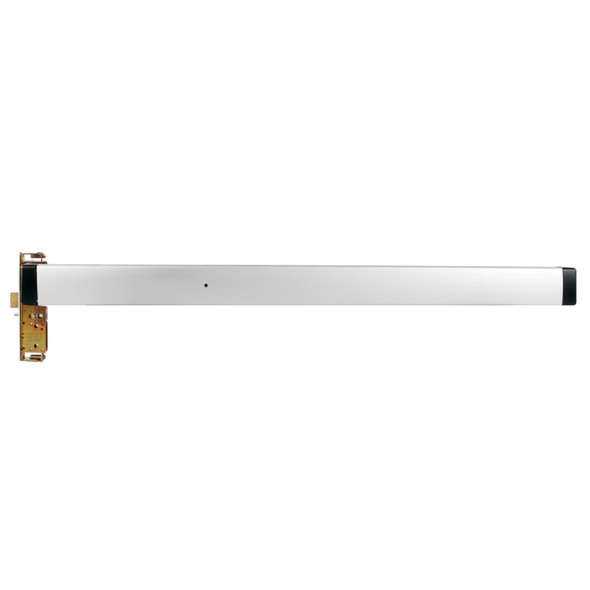

The Adams Rite 8410C-48136 is a mortise exit device designed for narrow stile aluminum doors up to 36 inches wide. Built for left-hand reverse (LHR) applications, it features a durable extruded aluminum pushbar with cylinder dogging for secure, controlled egress. Ideal for commercial buildings, schools, hospitals, and other facilities requiring ADA-compliant emergency exits.
This device fits standard 1-3/4" door thickness and adjusts to doors up to 8 feet tall with bar heights from 30" to 44". It accepts standard rim cylinders and includes field-reversible lever entry trim. As an authorized Adams Rite dealer, E.D. Locks provides expert installation guidance and product support. Contact us at sales@edlocks.com or 1-877-207-6067 for compatibility questions or orders over $450 (free shipping available).
Specifications
- Brand: Adams Rite
- Model: 8410C-48136
- Type: Mortise Exit Device
- Backset: 1-1/2"
- Application: Narrow Stile Aluminum Doors, LHR
- Pushbar Length: 36"
- Pushbar Material: Extruded Aluminum
- Bar Height Range: 30" to 44"
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Door Height: Up to 8 ft (Tall Door Kit 8055 available separately for 10 ft doors)
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" fully projected, 1-15/16" dogged
- Dogging: Cylinder Dogging (Hex key and electric dogging also available)
- Handing: Non-handed, field reversible lever entry trim
- Cylinder: Accepts standard Rim cylinder
- Door Thickness Range: 1-3/4" to 2-1/4"
- Fasteners: Self-tapping screws (optional Sex Bolt Kits 26-0584 available)
- Warranty: Five year limited
