Description

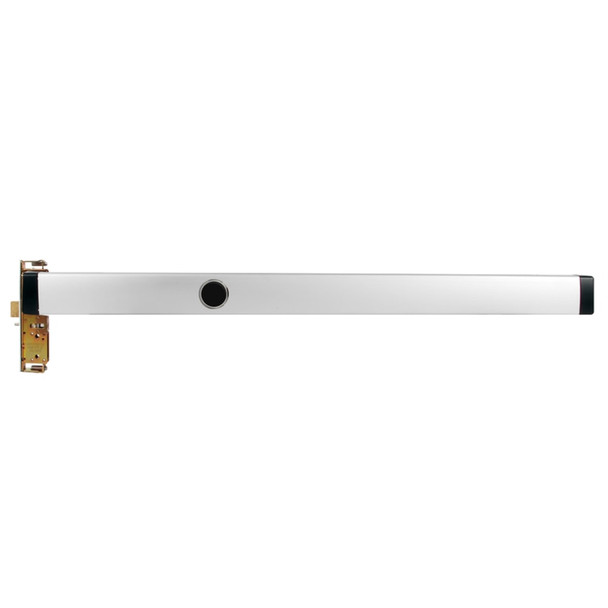

The Adams Rite 8410C mortise exit device is a professional-grade panic hardware solution for narrow stile aluminum doors on emergency exits. Designed for facilities managers and building owners who need reliable, code-compliant egress hardware, it solves security and safety requirements with cylinder dogging and field-reversible lever trim for flexible installation.
This device fits standard 1-3/4" to 2-1/4" door thickness and doors up to 8 feet tall, with optional tall door kits available for 10-foot applications. The aluminum pushbar is available in multiple finishes and field-cuttable to your opening width. As an authorized Adams Rite dealer, E.D. Locks provides expert guidance on handing, cylinder compatibility, and installation support. Contact our team at sales@edlocks.com or 1-877-207-6067 for technical assistance.
Specifications
- Brand: Adams Rite
- Model: 8410C-48148
- Type: Mortise Exit Device
- Backset: 1-1/2"
- Application: Narrow Stile Aluminum Doors
- Handing: LHR (Left Hand Reverse)
- Pushbar Length: 48"
- Dogging: Cylinder Dogging
- Materials: Extruded Aluminum (anodized or clad finishes)
- Bar Height Range: 30" to 44" adjustable
- Door Height Compatibility: Up to 8 feet standard (10 feet with optional kit)
- Door Thickness: 1-3/4" standard, up to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Cylinder: Accepts standard rim cylinder or mortise cylinder with MS cam (1" to 1-1/4" length)
- Warranty: Five year limited
