Description

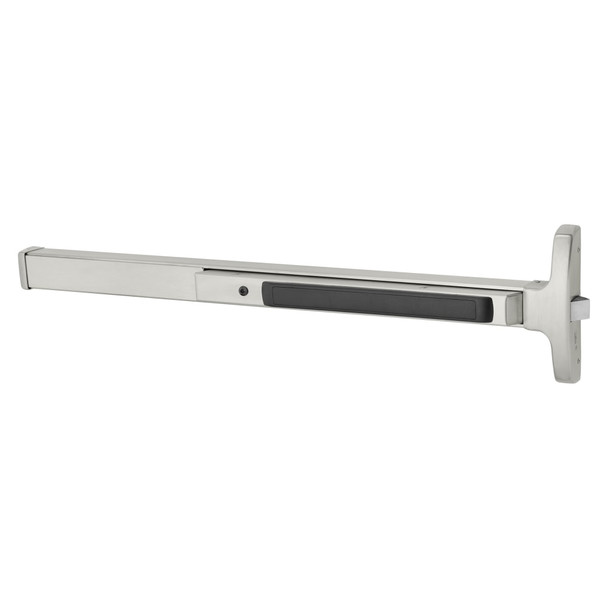

The Sargent 8513F 32D is a heavy-duty rim exit device built for commercial facilities demanding maximum security and durability. Grade 1 rated and engineered to exceed ANSI/BHMA standards, it features modular construction with minimal moving parts for maintenance-free operation. Ideal for wood or metal doors 1.75 inches thick with 24- to 32-inch widths using E Rail configuration.
This rim-mounted device installs on the interior of doors without mortising, making retrofit projects faster. Compatible with standard keying systems and available with options for delayed egress, alarmed exit, and electric latch retraction. As an authorized Sargent dealer, E.D. Locks provides expert guidance on configuration, keying, and installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support and competitive pricing.
Specifications
- Brand: Sargent
- Model: 8513F 32D
- Configuration: Rim exit device
- Door Thickness: 1.75 inches (44mm)
- Door Width Range: 24 to 32 inches (E Rail)
- Rail Type: E Rail, no cutting required for 32 inch doors
- Material Compatibility: Wood or metal doors
- Minimum Stile Width: 1.75 inches (44mm)
- Grade: ANSI/BHMA Grade 1
- Features: Modular construction, maintenance-free operation
- Options Available: Delayed egress, alarmed exit, electric latch retraction
