Description

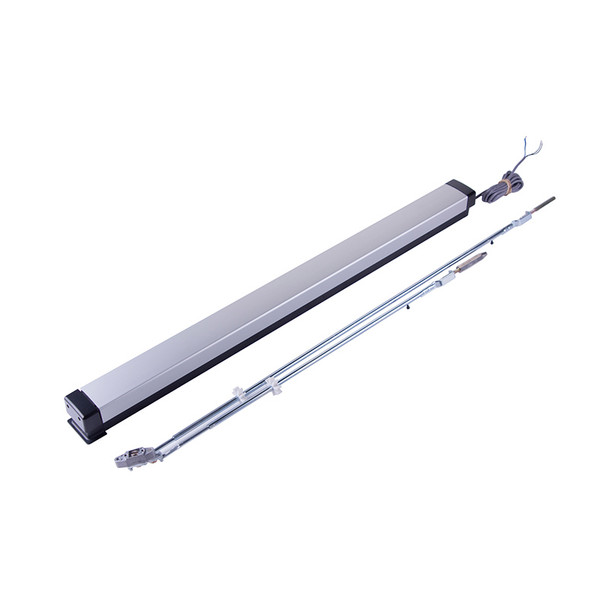

The Adams Rite 8611SE30 is a CVR exit device engineered for narrow stile aluminum doors. It solves life safety code compliance and emergency egress requirements for commercial facilities, schools, and offices. Non-handed design and field-reversible lever trim simplify installation and future modifications across your building.
This device fits standard 1-3/4" to 2-1/4" thick doors up to 8 feet tall with adjustable bar height from 30" to 44". Compatible with standard rim cylinders and optional mortise cylinders (sold separately). As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for keying and installation assistance.
Specifications
- Pushbar Length: 30" (field cuttable to smaller widths)
- Bar Height Adjustment: 30" to 44"
- Door Thickness: 1-3/4" to 2-1/4"
- Door Height: Up to 8 ft (Tall Door Kit available for 10 ft doors)
- Stile Width: Minimum 3-3/4"
- Projection: 2-15/16" extended, 1-15/16" dogged
- Material: Extruded aluminum, anodized finishes
- Handing: Non-handed
- Dogging: Standard hex key or optional cylinder/electric
- Warranty: Five year limited
- Cylinder Compatibility: Standard rim cylinders; optional mortise cylinders (1" to 1-1/4" length)
