Description

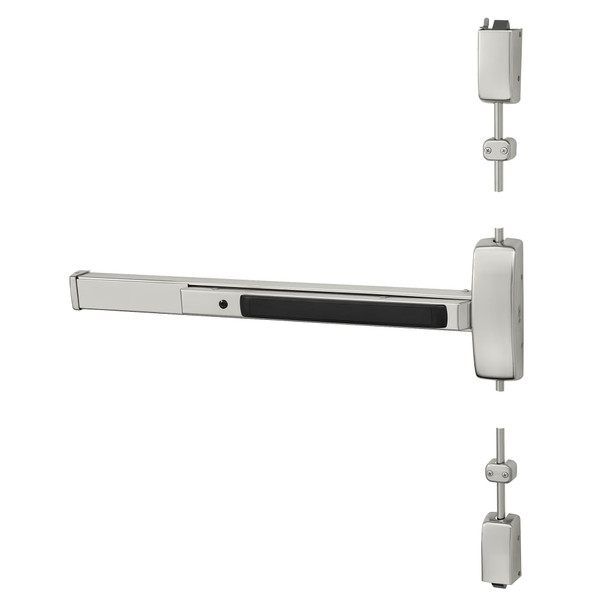

The Sargent 8706F ETA is a rim-mounted exit device engineered for wood and metal doors requiring ANSI/BHMA Grade 1 security. Ideal for commercial facilities, schools, and healthcare environments, this right-hand reverse unit delivers durable egress control with minimal maintenance and modular construction that simplifies repairs and upgrades.
The 8706F ETA fits doors 1 3/4 inches thick with E-rail configuration suitable for 24 to 32 inch door widths (no cutting required for 32 inch doors). Available in 32D satin stainless finish. For delayed egress, alarmed, or electric latch retraction options, or to verify compatibility with your specific opening, contact E.D. Locks as an authorized Sargent dealer at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Model: 8706F ETA
- Handing: Right-Hand Reverse (RHR)
- Finish: 32D Satin Stainless Steel
- Configuration: Rim-mounted
- Door Thickness: 1 3/4 inches (44mm)
- Rail Type: E-Rail
- Door Width Range: 24 to 32 inches (61cm to 81cm)
- No Cutting Required: 32 inch doors
- Grade: ANSI/BHMA Grade 1
- Door Material: Wood or metal
- Minimum Stile Width: 4 1/2 inches (114mm) with trim; 3 1/2 inches (89mm) without trim
