Description

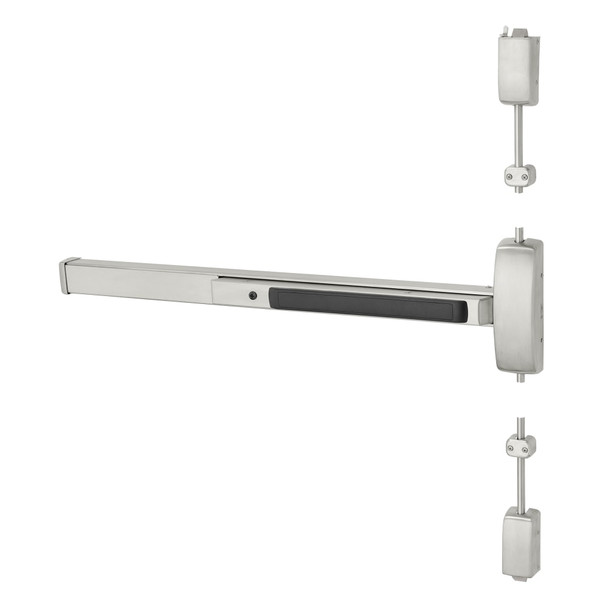

The Sargent 8706G is a Grade 1 rim exit device built for wood and metal doors requiring durable, low-maintenance security. Designed for facilities that demand strength and reliability, this device exceeds ANSI/BHMA standards with modular construction, few moving parts, and unsurpassed performance across commercial and institutional applications.
This model fits E-Rail doors 24 to 32 inches wide with no cutting required for 32-inch doors. Compatible with 1-3/4-inch thick doors (4.5-inch minimum stile with trim). For expert sizing, compatibility confirmation, and installation support, contact E.D. Locks as your authorized Sargent dealer at sales@edlocks.com or 1-877-207-6067.
Specifications
- Series: 80 Series
- Configuration: Rim, ETB (Exit Top and Bottom)
- Handing: LHR (Left Hand Reverse)
- Rail Type: E Rail
- Door Width Range: 24 to 32 inches (61 to 81 cm)
- No-Cut Width: 32 inches
- Door Thickness: 1-3/4 inches (44 mm)
- Minimum Stile: 4-1/2 inches (114 mm) with trim
- Grade: ANSI/BHMA Grade 1
- Construction: Modular with minimal moving parts
