Description

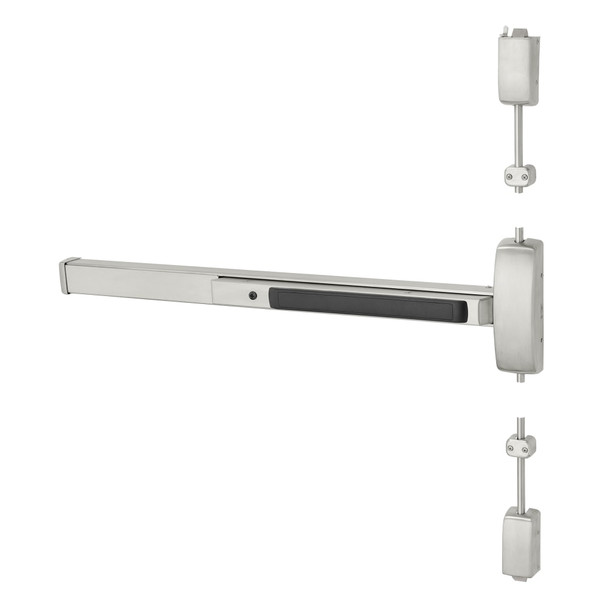

The Sargent 8706G is a heavy-duty exit device built for high-traffic commercial and institutional facilities. This rim-mounted panic bar exceeds ANSI/BHMA Grade 1 standards for durability and cycle life, delivering maintenance-free operation across the life of your building with modular construction and minimal moving parts.
Fits wood or metal doors 1-3/4 inch thick with E rail configuration for 24 to 32 inch door widths, requiring no cutting for 32 inch doors. Keyed with your facility's master system upon order. As an authorized Sargent dealer, E.D. Locks provides expert specification support and faster delivery. Contact our sales team at sales@edlocks.com or 1-877-207-6067 with your door details for proper sizing and installation guidance.
Specifications
- Brand: Sargent
- Model: 8706G
- Configuration: Rim, LHR (Left Hand Reverse)
- Finish: 32D (Stainless Steel)
- Door Thickness: 1-3/4 inch (44mm)
- Rail Type: E Rail
- Door Width Range: 24 to 32 inches
- Standard Door Width: 32 inches (no cutting required)
- Minimum Stile: 4-1/2 inch with trim, 3-1/2 inch without trim
- ANSI/BHMA Grade: Exceeds Grade 1
