Description

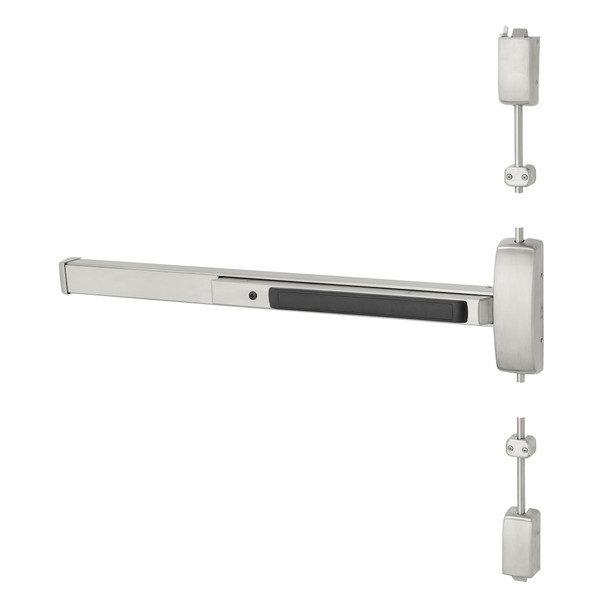

The Sargent 8706G is a Grade 1 exit device built for high-traffic commercial doors requiring reliable panic hardware. Engineered for wood or metal doors 1 3/4" to 2 1/4" thick, this right-hand reverse model combines durable rim construction with minimal maintenance, making it ideal for healthcare facilities, offices, and institutions where code compliance and long-term performance matter.
The 8706G fits doors 24" to 48" wide depending on rail selection (E, F, J, or G rail). For expert guidance on rail sizing, door thickness specifications, and installation on your specific door, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067. We provide technical support to ensure proper fit and function.
Specifications
- Brand: Sargent
- Model: 8706G ETL RHR 32D
- Type: Rim Exit Device
- Hand: Right-Hand Reverse
- Door Thickness: 1 3/4" to 2 1/4" (44-57mm)
- Door Width Range: 24" to 48" (varies by rail)
- Rail Options: E (24-32"), F (33-36"), J (37-42"), G (43-48")
- Minimum Stile: 4 1/2" with trim; 3 1/2" without trim
- Grade: ANSI/BHMA Grade 1
- Door Types: Wood or Metal
- Construction: Modular with few moving parts
