Description

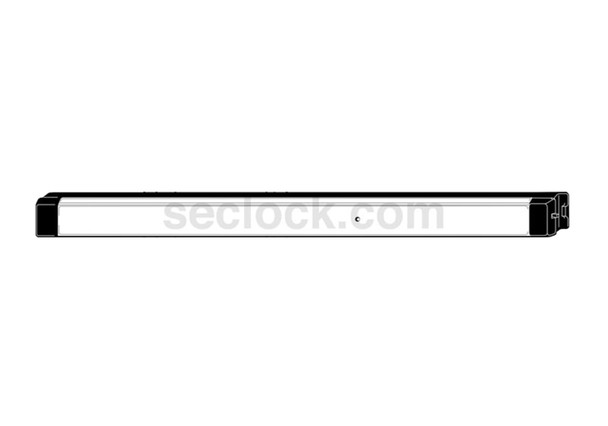

The Adams Rite 8800-48 is a rim exit device designed for narrow stile aluminum doors up to 8 feet tall. Built with an extruded aluminum pushbar in bright stainless steel, this non-handed device suits standard 1-3/4" to 2-1/4" door thickness. It solves emergency egress requirements for commercial buildings, retail storefronts, and facilities needing reliable panic hardware.
The 8800-48 installs on doors with minimum 3-3/4" stile width and features field-reversible lever entry trim for flexible deployment. It accepts standard rim cylinders and includes hex key dogging; optional cylinder and electric dogging are available separately. As an authorized Adams Rite dealer, E.D. Locks provides expert configuration guidance and five-year limited warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- Brand: Adams Rite
- Model: 8800-48-US32
- Product Type: Rim Exit Device
- Application: Narrow Stile Aluminum Doors
- Pushbar Length: 48"
- Finish: Bright Stainless Steel
- Bar Height Adjustment: 30" to 44"
- Door Height Capacity: Up to 8 ft (standard); up to 10 ft with 8055 Tall Door Kit
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 3-3/4"
- Projection: 2-15/16" projected, 1-15/16" dogged
- Handing: Non-handed
- Dogging: Standard hex key; optional cylinder or electric dogging available
- Cylinder Compatibility: Standard Rim cylinder (ANSI/BHMA Function 03)
- Warranty: Five year limited
