Description

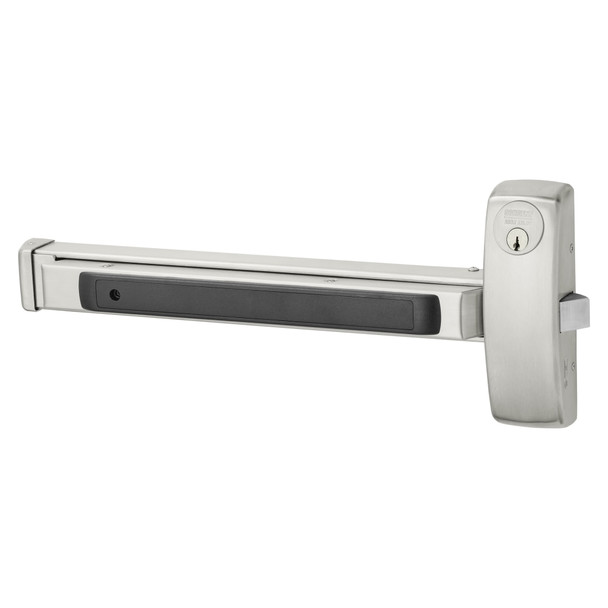

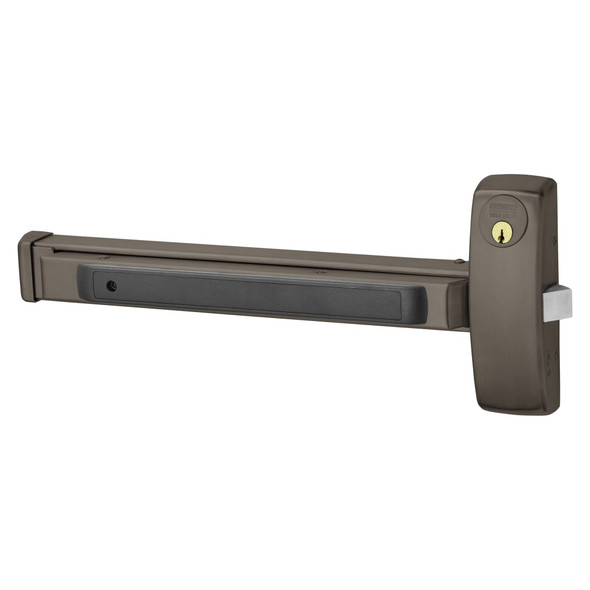

The Sargent 8816E RHR rim exit device is a Grade 1 panic bar engineered for wood and metal doors 1 3/4 inches thick. Ideal for commercial facilities requiring ANSI/BHMA-compliant egress hardware, it provides single-point latching in a durable rim configuration that handles both single and double door applications with minimal maintenance.
This 32-inch E-rail model fits standard door widths 24 to 32 inches without cutting. UL Fire and Panic listed, it exceeds ANSI A156.3 Grade 1 performance standards. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for proper sizing, installation guidance, and application support to ensure code compliance on your project.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: 8816E
- Configuration: RHR (Right Hand Reverse)
- Rail Type: E Rail
- Door Width Range: 24 to 32 inches
- Door Thickness: 1 3/4 inches
- Door Types: Wood or metal
- Latching: Single point
- Applications: Single and double doors with mullions
- Standard: ANSI A156.3 Grade 1
- Certifications: UL Fire and Panic listed
