Description

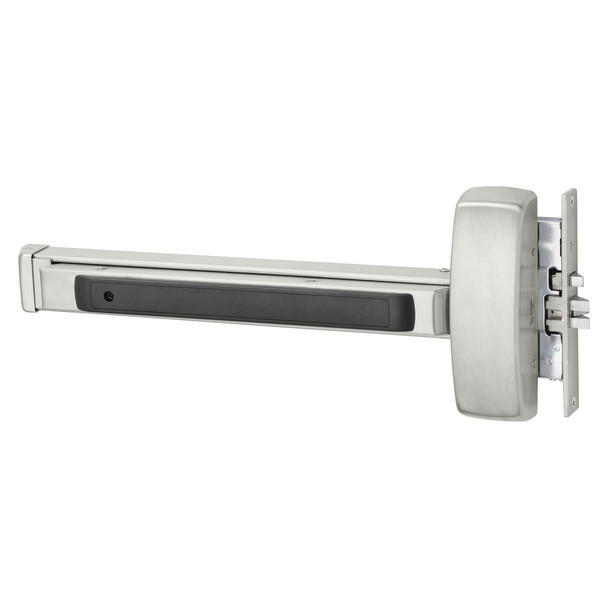

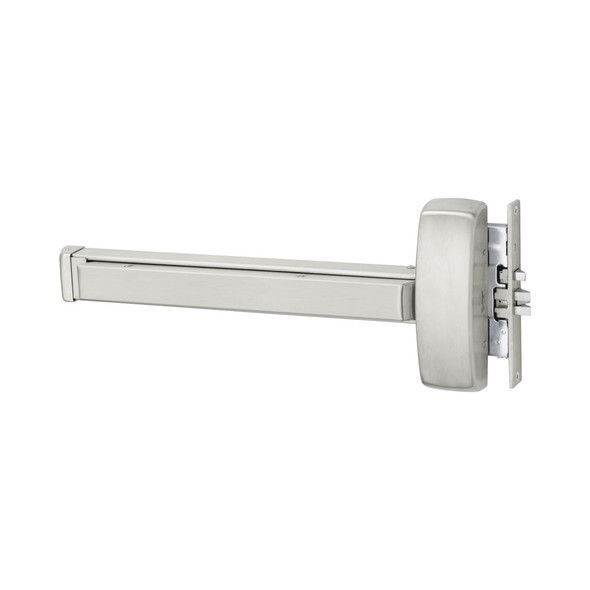

The Sargent 8904E RHR 32D is a mortise exit device engineered for commercial facilities demanding reliable, code-compliant egress hardware. Built on the proven 80 Series platform, it suits wood and metal doors 1-3/4 inches thick and delivers ANSI/BHMA Grade 1 performance with minimal maintenance due to its modular design and few moving parts.
This right-hand reverse mortise device fits doors 24 to 32 inches wide (E Rail) without cutting. Modular construction supports optional features like delayed egress, alarmed exit, and electric latch retraction for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for compatibility verification, installation guidance, and expert support from an authorized Sargent dealer.
Specifications
- Brand: Sargent
- Model: 8904E RHR 32D
- Configuration: Mortise
- Handing: Right Hand Reverse
- Door Thickness: 1-3/4 inches (44mm)
- Door Width Range: 24 to 32 inches (E Rail)
- Minimum Stile Width: 4-1/2 inches (114mm)
- Standards: Exceeds ANSI/BHMA Grade 1
- Door Types: Wood or metal
