Description

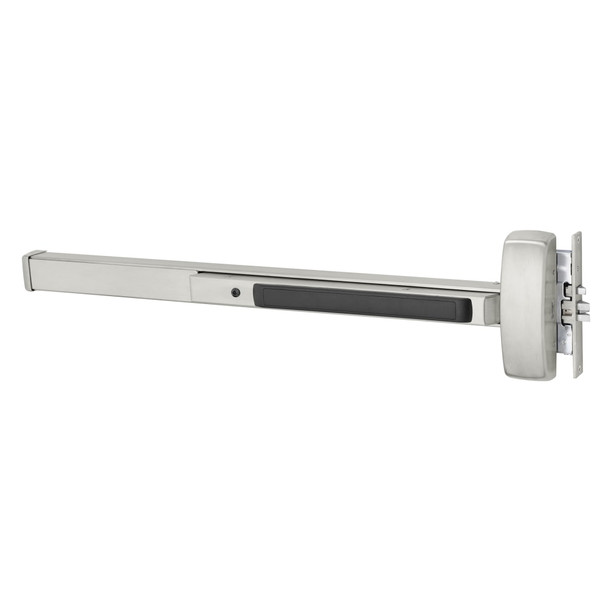

The Sargent 8904G is a mortise exit device engineered for commercial facilities demanding durability and security throughout the building's lifecycle. Ideal for wood or metal doors 1-3/4" thick, this Grade 1 certified device features modular construction with minimal moving parts, ensuring maintenance-free operation and reliable egress control for high-traffic environments.
This right-hand reverse (RHR) model fits doors 43" to 48" wide using the G Rail configuration with no cutting required at 48". Compatible with doors meeting 4-1/2" minimum stile width, the 8904G supports delayed egress, alarmed, and electric latch retraction options for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, installation, and keying to ensure proper fit and compliance.
Specifications
- Model: 8904G RHR 32D
- Configuration: Mortise
- Handedness: Right-Hand Reverse (RHR)
- Door Thickness: 1-3/4" (44mm)
- Rail Type: G Rail
- Door Width Range: 43" to 48" (110cm to 122cm)
- No Cutting Required At: 48"
- Minimum Stile Width: 4-1/2"
- Grade: ANSI/BHMA Grade 1
- Compatible Door Types: Wood or Metal
