Description

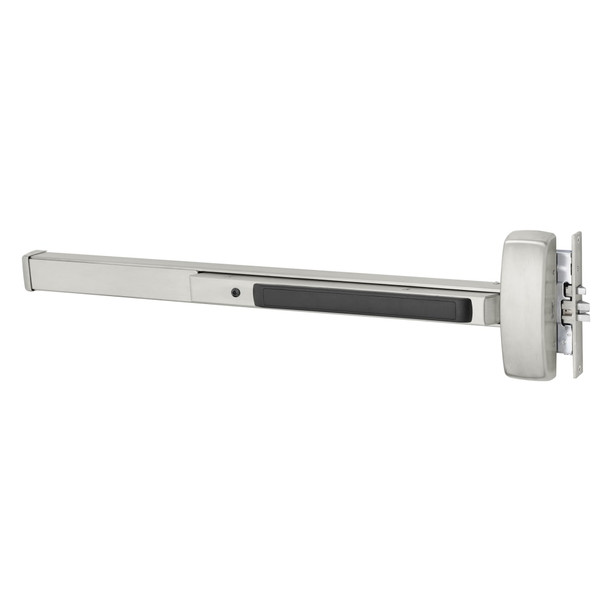

The Sargent 8913G mortise exit device is a Grade 1 certified panic bar designed for wood and metal doors requiring durable, maintenance-free egress hardware. Built for commercial facilities that demand long-lasting security and reliability, this mortise-mounted device combines modular construction with minimal moving parts to eliminate maintenance while exceeding ANSI/BHMA standards for strength and cycle performance.
This unit fits 1-3/4" thick doors with 4-1/2" minimum stile width and the 32D designation is optimized for 24"-32" door widths with no cutting required at 32". The Sargent 80 Series supports delayed egress, alarmed, and electric latch retraction options for specialized applications. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for compatibility verification and expert installation guidance.
Specifications
- Brand: Sargent
- Model: 8913G LHR 32D
- Type: Mortise Exit Device
- ANSI/BHMA Grade: Grade 1
- Door Thickness: 1-3/4" (44mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Door Width Range: 24" to 32" (61cm to 81cm)
- No Cutting Required At: 32" door
- Compatible Door Materials: Wood or Metal
- Configuration: Mortise
- Series: 80 Series
