Description

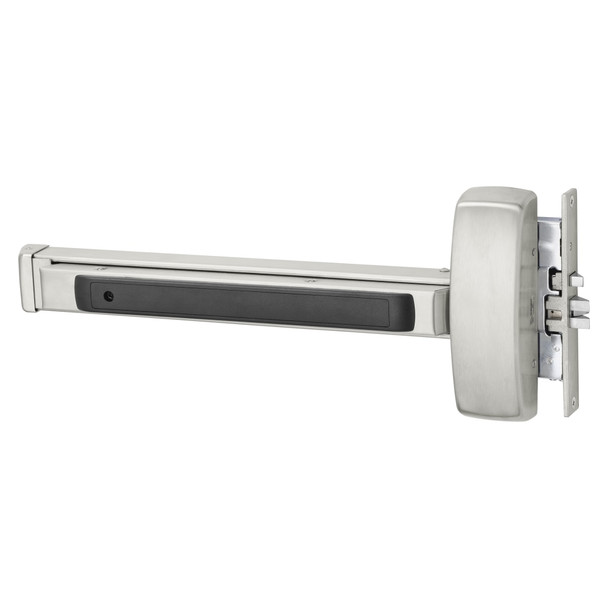

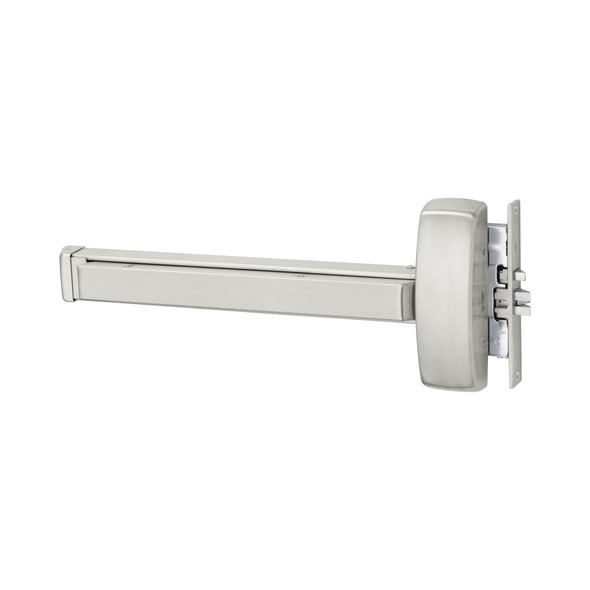

The Sargent 8946E RHR 32D is a mortise exit device built for facilities demanding heavy-duty security and reliability. Part of the 80 Series, it exceeds ANSI/BHMA Grade 1 standards and suits wood or metal doors 1 3/4" thick with a minimum 4 1/2" stile. Modular construction and minimal moving parts mean low maintenance and lasting performance.
This right-hand reverse (RHR) mortise unit fits door widths 24" to 32" without cutting required at 32". Options include delayed egress, alarmed exit, and electric latch retraction for specialized applications. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on compatibility, installation, and keying.
Specifications
- Brand: Sargent
- Model: 8946E RHR 32D
- Type: Mortise exit device
- Handedness: Right-hand reverse (RHR)
- Door thickness: 1 3/4" (44mm)
- Minimum stile width: 4 1/2" (114mm)
- Door width range: 24" to 32" (61cm to 81cm)
- No cutting required at: 32" door
- Door types: Wood or metal
- Standards: Exceeds ANSI/BHMA Grade 1
- Configuration: Mortise
- Series: 80 Series
