Description

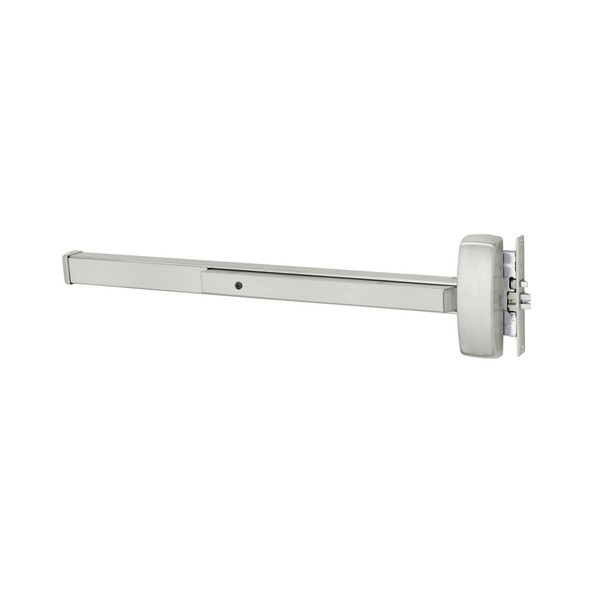

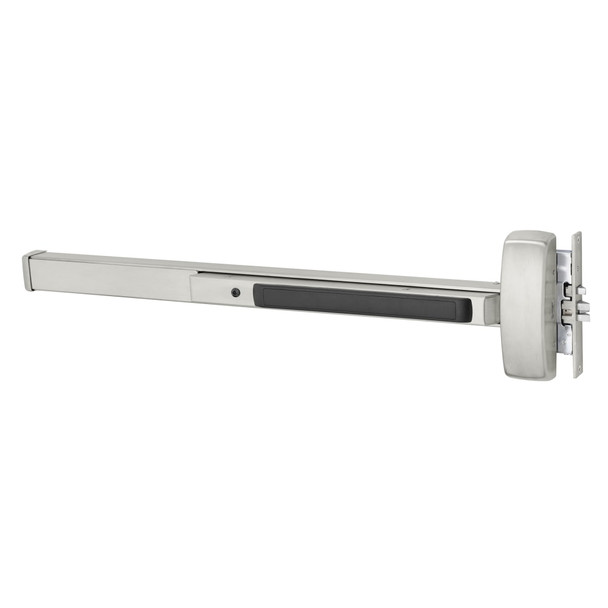

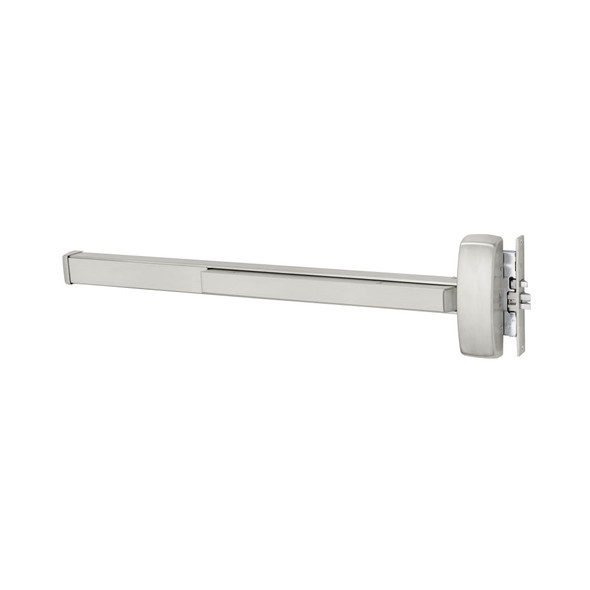

The Sargent 8946J mortise exit device delivers Grade 1 security for wood and metal doors up to 1 3/4 inches thick. Built for high-traffic commercial facilities, this heavy-duty exit control solution exceeds ANSI/BHMA standards with modular construction, minimal maintenance, and reliable panic hardware performance that lasts the building's lifetime.
This J-rail model fits doors 37 to 42 inches wide with no cutting required for 42-inch doors. Sargent's 80 Series supports optional delayed egress, alarmed exit, and electric latch retraction features. For compatibility verification and custom specifications, contact our expert team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Brand: Sargent
- Series: 80
- Model: 8946J RHR 32D
- Configuration: Mortise
- Handing: RHR (Right Hand Reverse)
- Door Thickness: 1 3/4 inches (44mm)
- Door Width Range: 37 to 42 inches (94cm to 107cm)
- No Cutting Required: 42-inch doors
- Minimum Stile Width: 4 1/2 inches (114mm)
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
