Description

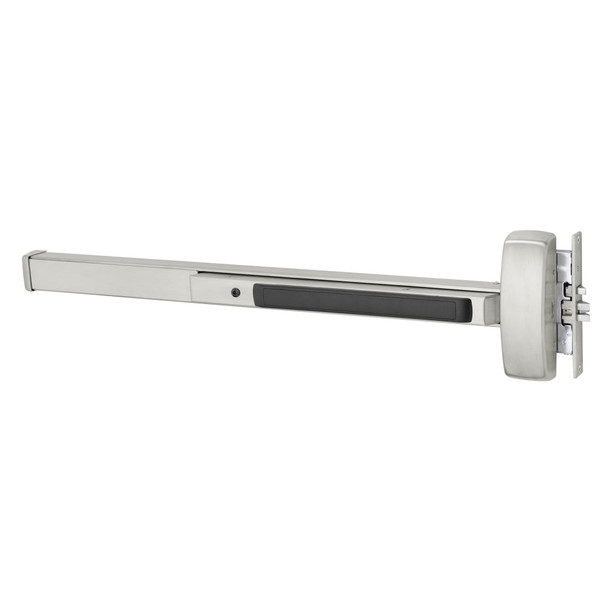

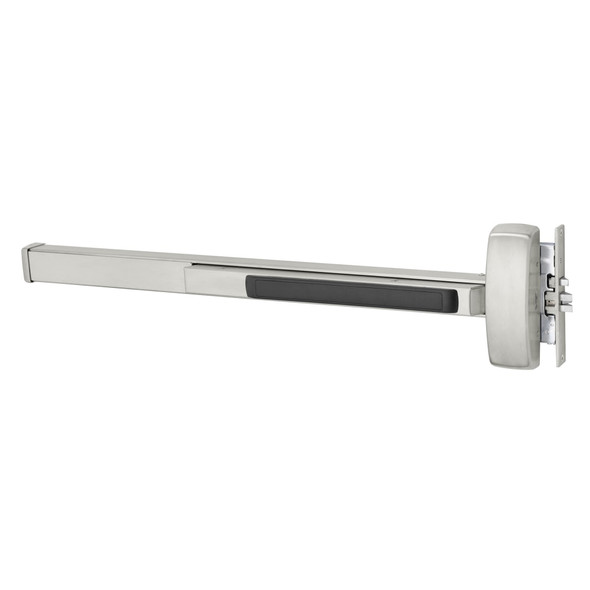

The Sargent 8975G is a Grade 1 mortise exit device engineered for wood and metal doors requiring heavy-duty security and reliability. Ideal for commercial facilities, educational institutions, and high-traffic buildings, this mortise device combines strong latch action with modular construction to minimize maintenance while maximizing door security and code compliance.
Fits 1-3/4" thick doors with a minimum 4-1/2" stile; the RHR (right-hand reverse) configuration works with G rail for 43-48" door widths. The 80 Series exceeds ANSI/BHMA Grade 1 requirements and supports optional delayed egress, alarm, and electric latch retraction features. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert sizing, keying, and installation guidance.
Specifications
- Brand: Sargent
- Model: 8975G RHR 32D
- Type: Mortise Exit Device
- Configuration: Right-Hand Reverse (RHR)
- Rail: G Rail
- Door Width Range: 43-48 inches
- Recommended Door Thickness: 1-3/4 inches
- Minimum Door Stile: 4-1/2 inches
- Door Types: Wood or metal
- Grade: ANSI/BHMA Grade 1
- Series: 80 Series
