Description

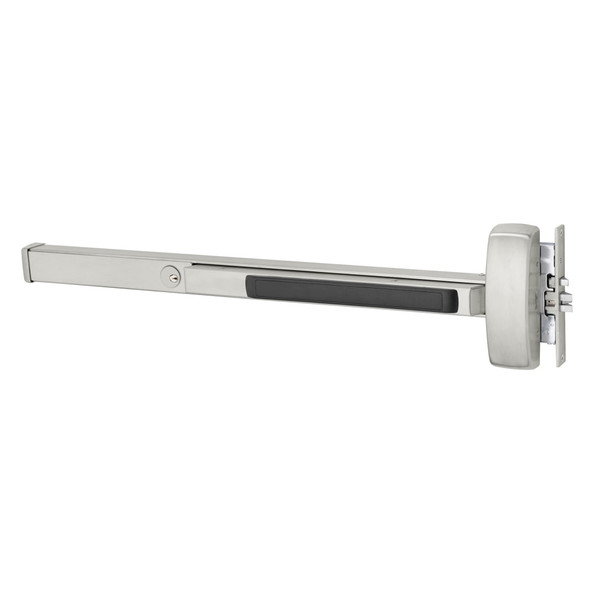

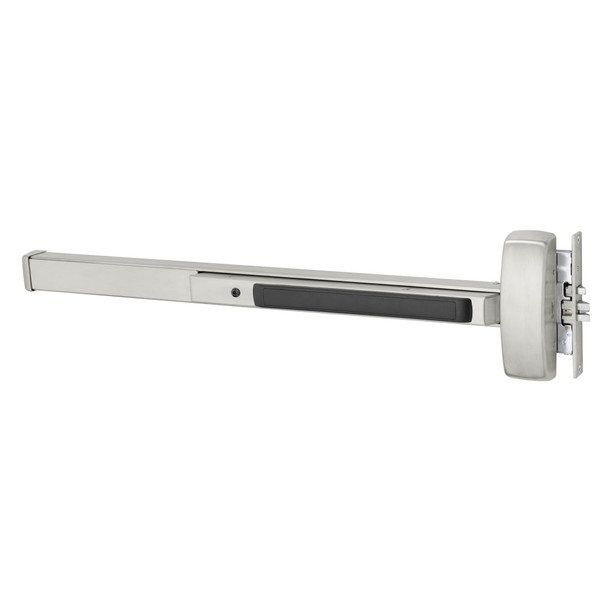

The Sargent 8976F mortise exit device is a Grade 1 certified panic bar designed for wood or metal doors 1-3/4" thick. Built for high-traffic commercial facilities, it provides reliable emergency egress while maintaining superior security and durability. The 80 Series exceeds ANSI/BHMA Grade 1 cycle and strength requirements with minimal maintenance.
This right-hand reverse (RHR) model fits doors 24-32" wide on the E rail with no cutting required for 32" doors. Verify your door thickness, width, and hand orientation before ordering. As an authorized Sargent dealer, E.D. Locks offers expert guidance on mortise exit device selection and installation. Contact sales@edlocks.com or call 1-877-207-6067 for free technical assistance.
Specifications
- Brand: Sargent
- Model: 8976F
- Configuration: Mortise, Right-Hand Reverse (RHR)
- Compatible Door Types: Wood or metal
- Door Thickness: 1-3/4" (44mm)
- Door Width Range: 24" to 32" (61-81cm)
- Rail Type: E Rail
- Certification: ANSI/BHMA Grade 1
- Minimum Stile Width: 4-1/2" (114mm)
