Description

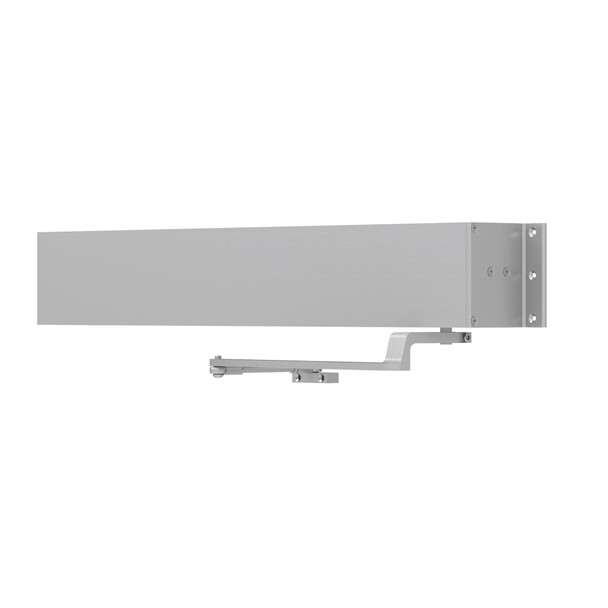

The LCN 9542-REG 42 is a Grade 1 ADA-compliant automatic door operator designed for facilities requiring accessible entry. This two-in-one swing operator activates to open doors automatically for wheelchair users while allowing manual operation for everyday pedestrian traffic, solving accessibility and traffic flow challenges in one device.
Compatible with single doors 33" to 48" wide, the operator installs surface-mount with offset pivot and butt hinge configuration. It meets ANSI A156.19, UL325/228, UL1998, and Buy American Act standards. As an authorized LCN dealer, E.D. Locks provides expert installation guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper setup and performance.
Specifications
- Grade: 1
- Standards: ANSI A156.19, UL325/228, UL1998, ADA
- Door Width: 33" minimum to 48" maximum per leaf
- Installation: Surface mount, offset pivot
- Hinge Type: Butt hinge, push side
- Arm Type: Regular Arm (3077)
- Finish: 628 Aluminum, Anodized (also available 710 Dark Brown, Anodized)
- Weather Rating: All Weather Fluid, 100 Hour Salt Spray
- Warranty: 2 years
- Fastening: Machine Screws (MS)
