Description

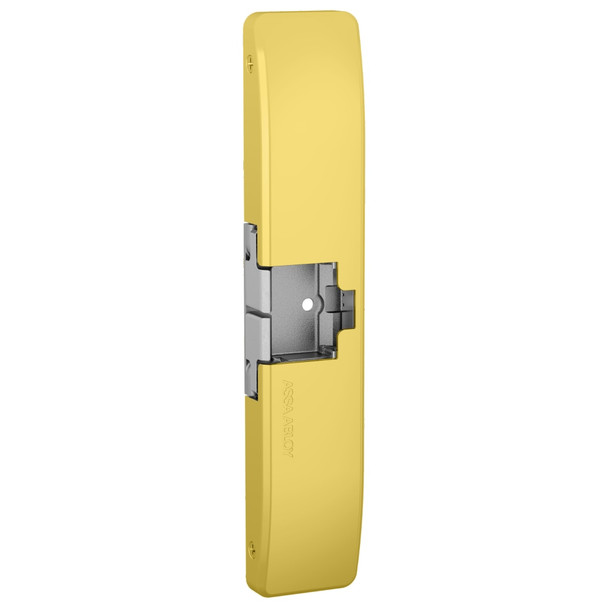

The HES 9700-606 is a heavy-duty surface-mounted electric strike engineered for Corbin Russwin SecureBolt and Yale SquareBolt exit devices. Its 3/4" stainless steel housing eliminates the need for frame cutting, making installation faster and cleaner. Field-selectable for fail secure/fail safe operation and 12/24VDC, it suits demanding commercial and institutional applications.
This strike meets UL 1034 burglary-resistant and UL 10C 3-hour fire-rated standards (fail secure), plus ANSI/BHMA Grade 1 specifications. Compatible with specified exit device models; verify your hardware before ordering. As an authorized HES dealer, E.D. Locks provides expert guidance and full product support. Contact sales@edlocks.com or 1-877-207-6067 with technical questions.
Specifications
- Housing thickness: 3/4" stainless steel
- Voltage: Field selectable 12 or 24VDC
- Operation: Field selectable fail secure or fail safe
- UL listings: UL 1034, UL 10C (3-hour, fail secure only), UL 294 (6th Edition)
- Fire rating: NFPA-252, ASTM-E152, CAN4-S104 (ULC-S104) compliant
- Standards: ANSI/BHMA A156.31 Grade 1, ANSI 250.13 Severe Windstorm
- Approvals: Florida Building Code (#14307), California Fire Marshall listed
- Burglary rating: UL 1034
- Outdoor rated: Yes
- RoHS compliant: Yes
