Description

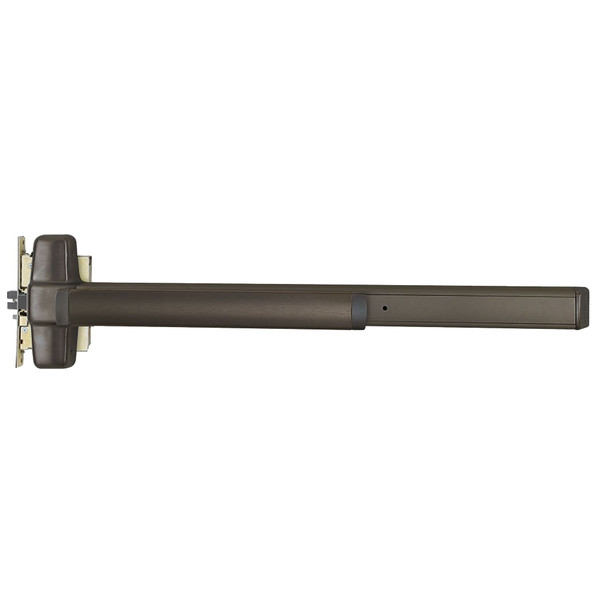

The Von Duprin 9875NL is a UL-listed mortise lock exit device designed for single and double doors in commercial buildings. This Grade 1 ANSI A156.3 panic hardware fits hollow metal doors with 86 cutouts and door stiles as narrow as 4 3/4 inches, making it ideal for retrofit and new construction projects requiring reliable emergency egress.
The device features a 3/4-inch anti-friction latch bolt that is field reversible and a non-handed auxiliary deadbolt for added security. It is compatible with standard mortise lock preparation and installs without removing the lock from the door. Contact our authorized dealer specialists at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing requirements, and finish selection to ensure your installation meets all code requirements.
Specifications
- Brand: Von Duprin
- Model: 9875NL 3 313
- Latch Bolt: 3/4 inch (19mm), anti-friction, field reversible
- Certification: UL listed, ANSI A156.3 2008 Grade 1
- Door Compatibility: Stock hollow metal doors with 86 cutout
- Minimum Door Stile Width: 4 3/4 inches (121mm)
- Case Style: Smooth mechanism case
- Auxiliary Bolt: Non-handed deadbolt
- Faceplate: Adjustable bevel
- Finish: Satin Stainless Steel (313)
- Handing: Non-handed (except with -2 double cylinder or SS signal switch options)
