Description

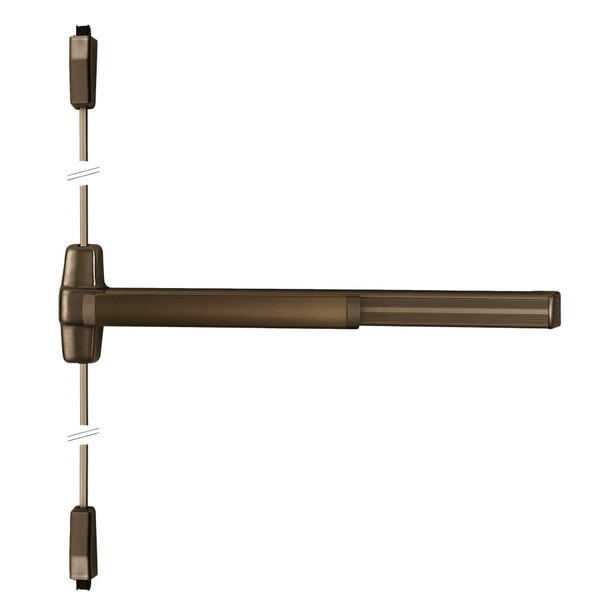

The Von Duprin 9927L-06-F is a UL-listed fire exit device designed for pairs of doors up to 8' x 10'. This surface-mounted vertical rod device meets ANSI A156.3-2008 Grade 1 standards and features a grooved mechanism case. It's ideal for commercial buildings, hospitals, and facilities requiring reliable emergency egress hardware that passes rigorous fire safety codes.
This right-hand reverse (RHR) model is non-handed unless a signal switch option is selected. Compatible with hollow metal and tin-clad composite fire doors, the device pairs with optional vertical rod and latch guards for impact protection. As an authorized Von Duprin dealer, E.D. Locks offers expert guidance on installation, keying, and code compliance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration.
Specifications
- Maximum door size: 8' x 10' (2438mm x 3048mm)
- Device type: Surface mounted vertical rod
- Mechanism case: Grooved
- Grade: ANSI A156.3-2008 Grade 1
- UL listed for fire exit
- Orientation: Right-hand reverse (RHR)
- Available finishes: US3, US4, US10, US26, US26D, US28, 313
- Compatible with: Hollow metal doors, tin-clad composite fire doors
