Description

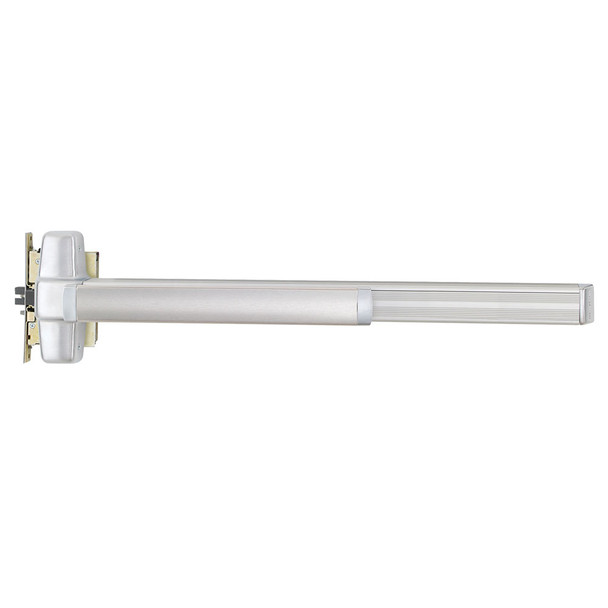

The Von Duprin 9975L-06-F 3 is a fire-rated mortise exit device designed for single doors up to 4 feet by 10 feet. Built to ANSI A156.3 Grade 1 standards, it suits narrow door stiles as small as 4 3/4 inches. The grooved case design and 3/4-inch anti-friction latch bolt provide reliable emergency egress for commercial buildings, hospitals, schools and other facilities requiring code-compliant panic hardware.
This right-hand reverse (RHR) model installs in standard mortise preparations. The field-reversible latch bolt and adjustable bevel faceplate simplify installation. The US28 (satin aluminum) finish resists fingerprints and corrosion. As an authorized Von Duprin dealer, E.D. Locks offers expert guidance on sizing, keying and compliance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 with questions about your specific door application.
Specifications
- Model: 9975L-06-F 3 US28 RHR
- Grade: ANSI A156.3 2008 Grade 1
- Latch Bolt: 3/4 inch anti-friction, field reversible
- Minimum Door Stile Width: 4 3/4 inches
- Maximum Door Size: 4 feet x 10 feet
- Finish: US28 (Satin Aluminum)
- Orientation: Right-Hand Reverse
