Description

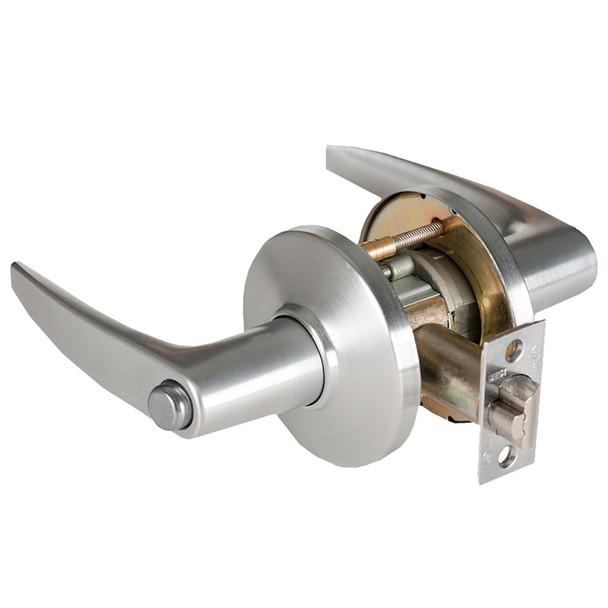

The BEST 9K30L16 is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors. Built to withstand over 4 million cycles while resisting lever sag and component wear, this lock solves the durability and maintenance challenges that plague standard cylindrical locks in demanding environments.
This lock is compatible with 1 3/4" and 2 1/4" doors and features a 2 3/4" backset with standard ANSI strike. The 6-pin non-IC brass cylinder supports multiple keyway options including Schlage, Yale, Medeco, and Sargent. Installation takes just 5 steps with the pre-assembled hub design. As an authorized BEST dealer, E.D. Locks provides expert technical support at sales@edlocks.com or 1-877-207-6067 to ensure proper keying and installation.
Specifications
- Grade: 1
- Latch: Solid stainless steel, 9/16" throw, 2 1/4" and 1 1/8" beveled front
- Lever handles: Plated zinc alloy
- Trim: Satin Chrome
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike options available
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
- Keying: 6-pin non-IC brass cylinder; 6- or 7-pin SFIC option available
- Keyway options: LFIC SCHRC-Schlage, Non-IC COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale
- Cycle rating: Over 4 million cycles, exceeds ANSI Grade 1 standards
