Description

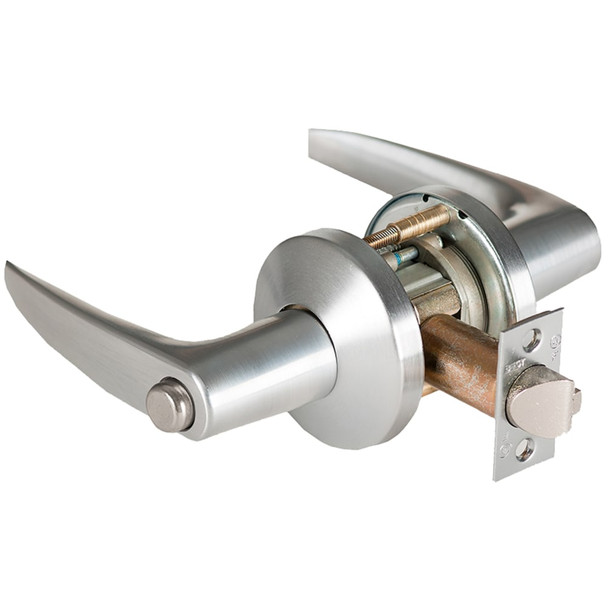

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built for durability and low maintenance, it solves the costly problem of lock failure and frequent servicing by delivering proven security and exceptional cycle life (over 4 million tested cycles) in high-traffic environments.
The 9K accommodates 1 3/4" and 2 1/4" doors with standard 2 3/4" backset and offers quick rekeying via interchangeable SFIC or 6-pin cylinder cores in multiple keyway options. As an authorized BEST dealer, E.D. Locks provides expert configuration assistance and keying support at sales@edlocks.com or 1-877-207-6067 to ensure your locks meet access control and masterkey requirements.
Specifications
- Grade: 1 (ANSI certified)
- Latch: Solid stainless steel, 9/16" throw, 2 1/4" front, 1 1/8" beveled
- Lever handles: Plated zinc alloy
- Finish: Satin Chrome (STK 626)
- Strike: ANSI 2 3/4" standard (ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat available)
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard (3 1/2" and 5" available)
- Cylinder: 6-pin non-IC brass or 6-7-pin SFIC option
- Keyways: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
